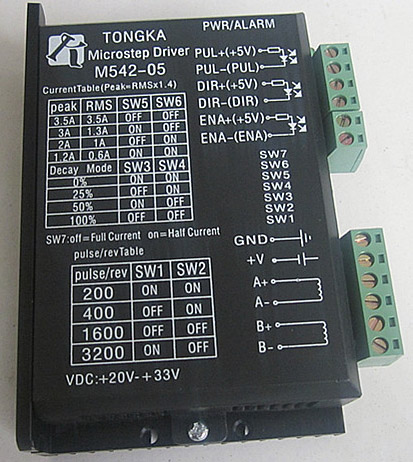

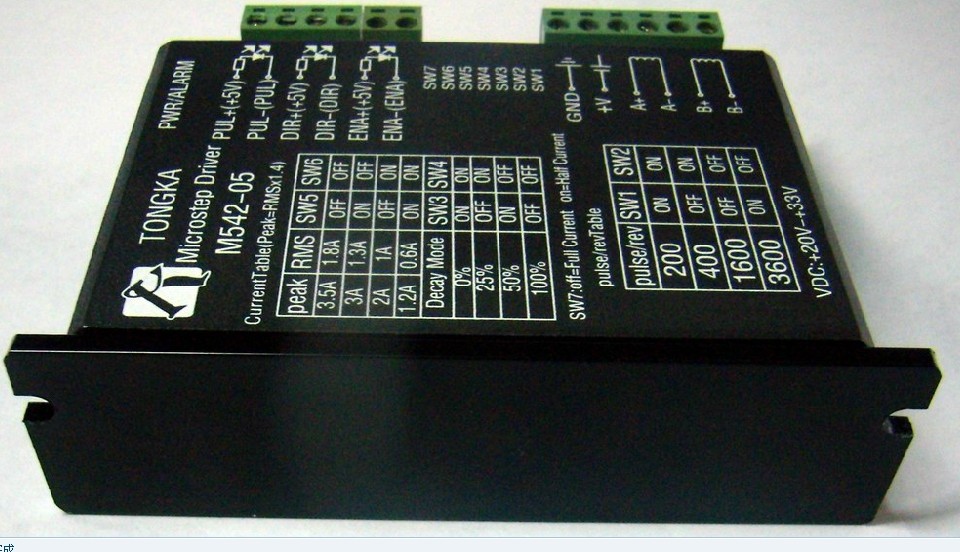

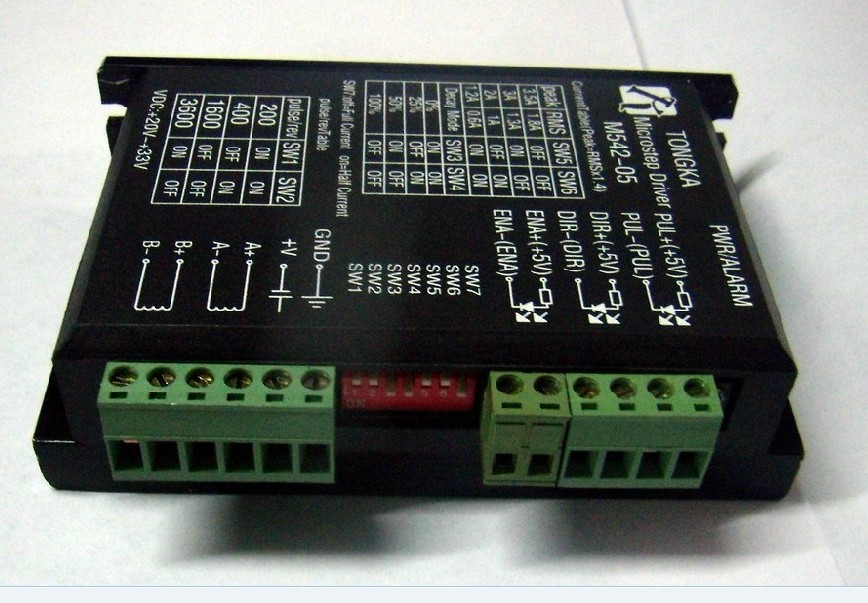

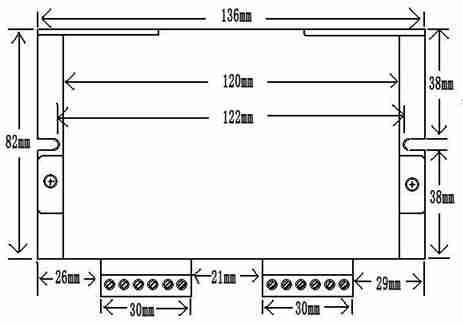

dispensing machine Drive M542H
Introduction:

M542H is a professional of two phase stepping motor driver. Can achieve positive &negative control, through the selection of three dial the code switch 8 control gear (1,2,4,8, 16, 32, 64128), through the three dial the code switch selection six-speed current control (0.5 A, 1 A, 1.5 A, 1.8 A, 2.5 A, 3 A). Suitable for driving 57, 42 two phase, four phase hybrid stepping motors. To achieve the effect of low noise, little vibration, high speed drive motor.
Feature:

1:The power meter function

2:Current chosen by dial the code switch

3:Interface using high-speed optical coupling isolation

4:Eight kinds of segmentation is adjustable

¡¡

 5:Automatic flow of half

6:High level of integration with high reliability

7:High frequency interference resistance ability

8:The highest pressure 40 v DC

¡¡

¡¡

¡¡

¡¡

FAQ

1, Q: first use the stepper drive, how can you get started as soon as possible?
   A: Properly connected the power and motor, only connect the pulse signal (first to set the frequency to less than 1 k), set to 16 segment, direction and offline impending, after add electric motor default forward at this time. After operation and correct direction then test speed (frequency),direction, subdivide and offline, etc.
2, Q: The power indicator light is not bright?
   A: i In premise of no problem with the power, may be the power connect backwards.
3, Q: What is the effect of power supply reverse£¿
   A: the product has anti electric protection, if the power supply, the product does not work, the power light is not on.
4, Q: control signal is higher than 5 v, be sure to add series resistance?
   A: yes, otherwise may burn drive control interface circuit.
5, Q: after the power indicator, but the motor does not turn, what reason be?
   A: if the wiring is correct, but still do not turn, control part drive ability is not enough, this kind of circumstance appeared in more directly with microcontroller IO port control mode. Please make sure that the control interface has 5 ma driving ability.
6, Q: how to determine the definition of step motor four lines?
   A: the motor of arbitrary two lines connect together, this time by hand screw motor resistance, the two lines is the same, may meet in A + and A - drive; The other two sub is still resistance, will the two lines in the B + and B -.
7, Q: motor and reversing situation and should be opposite actually reached?
   A: just need to take one of two wires swap access

¡¡

If you are a mechanical fan, like your own research and development innovation, our products will make you satisfied.

¡¡

Item included:

017403   dispensing machine Drive M542H

¡¡

¡¡

¡¡
