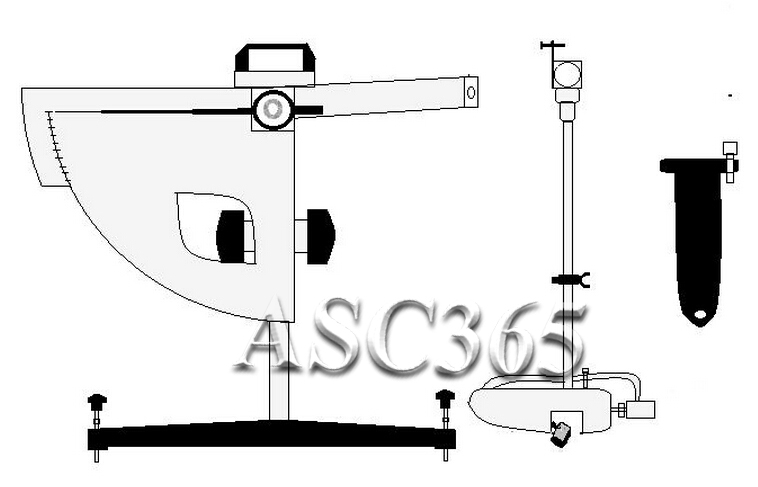

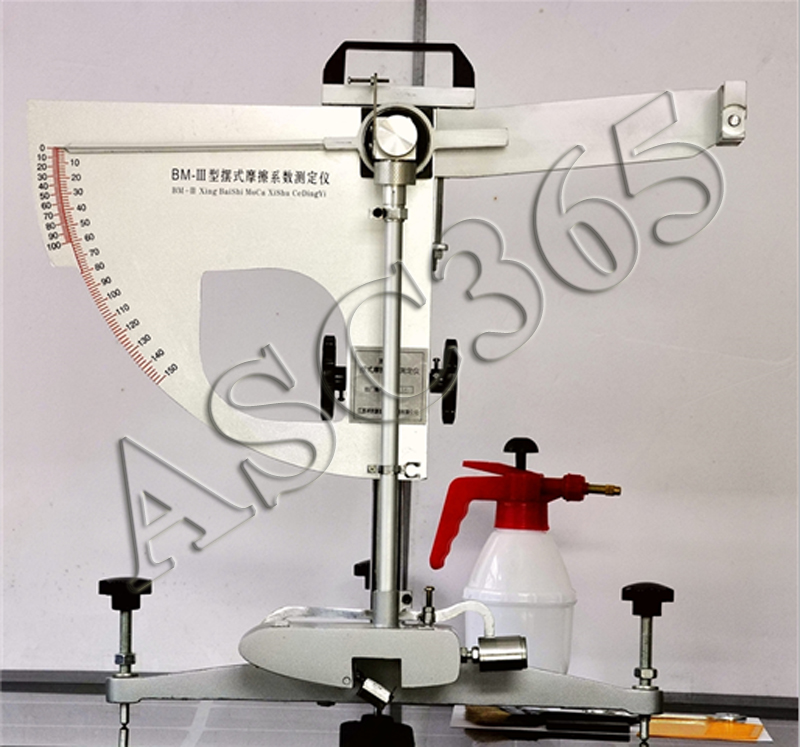

Portable Skid Resistance Tester
The skid resistance tester is used to determine friction coefficients of road surface, airport runway, marking paint, etc., and to determine the friction coefficients of typical road surfaces to provide a basis for various tire compounds. The tester is characterized by convenient debugging, simple operation, less impact on traffic during measuring, more stable data, and usage in both indoor and outdoor circumstances.

Item specifics

กก

Usage: Abrasion Tester

Rocking torque:615000g.mm

Pendulum mass:1500g(3.3lb)

Pendulum center distance:410mm (16.1inch)

Forward static pressure from rubber sheet to pavement:2263g(5lb)

Distance between rocking center to rubber sheet outer edge:508mm(20inch)

Net weight:14kg(30.9lb)
