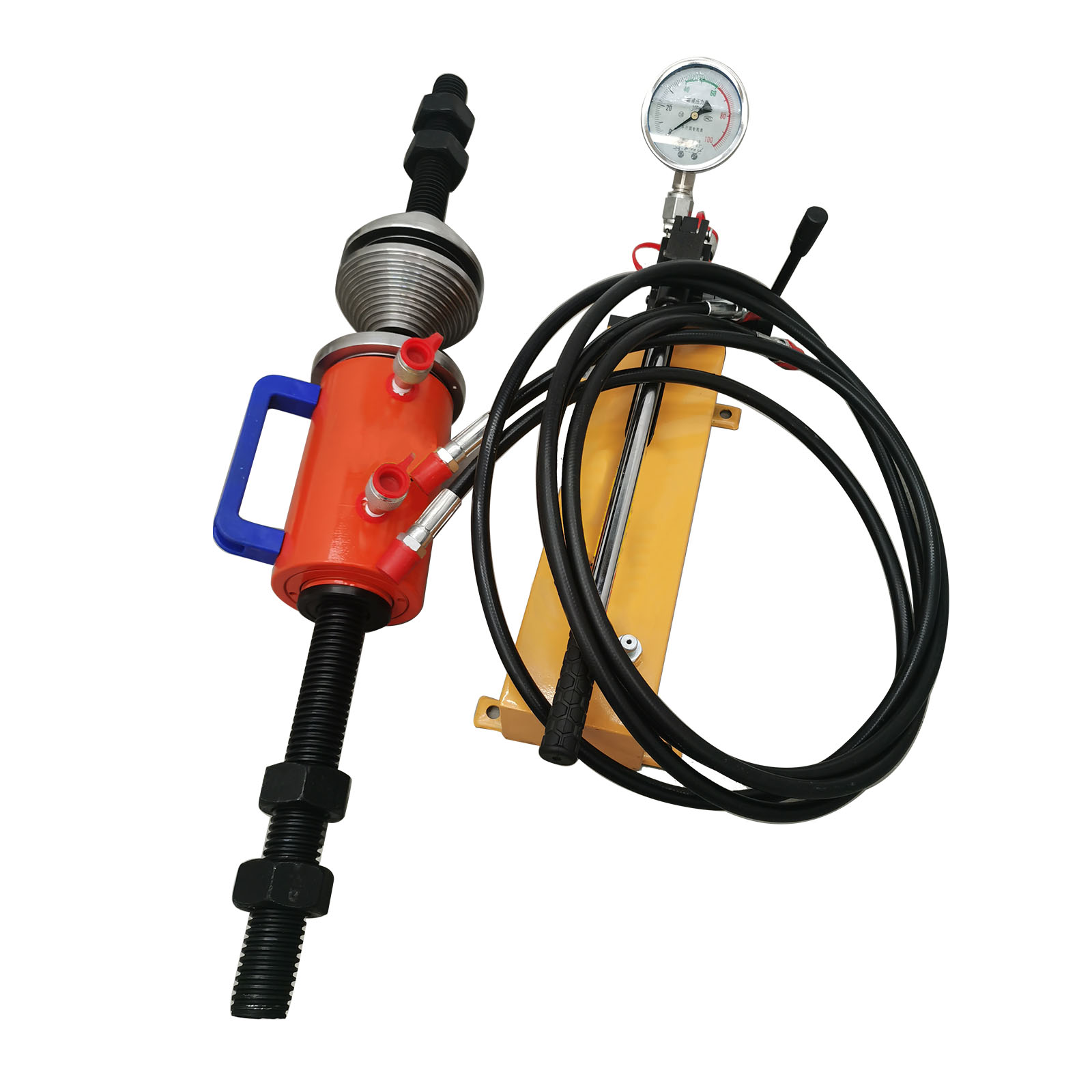

30T Excavator sleeve pressing machine

http://topseller365.com/data/prd/022/741/0000.jpg
Function
  • The press sleeve machine is suitable for pressing and installing shaft sleeves of various tracked construction machinery equipment. It is a commonly used equipment in construction machinery maintenance enterprises. This equipment adopts a bidirectional hydraulic device to reduce oil circuits, facilitate maintenance, and operate flexibly.

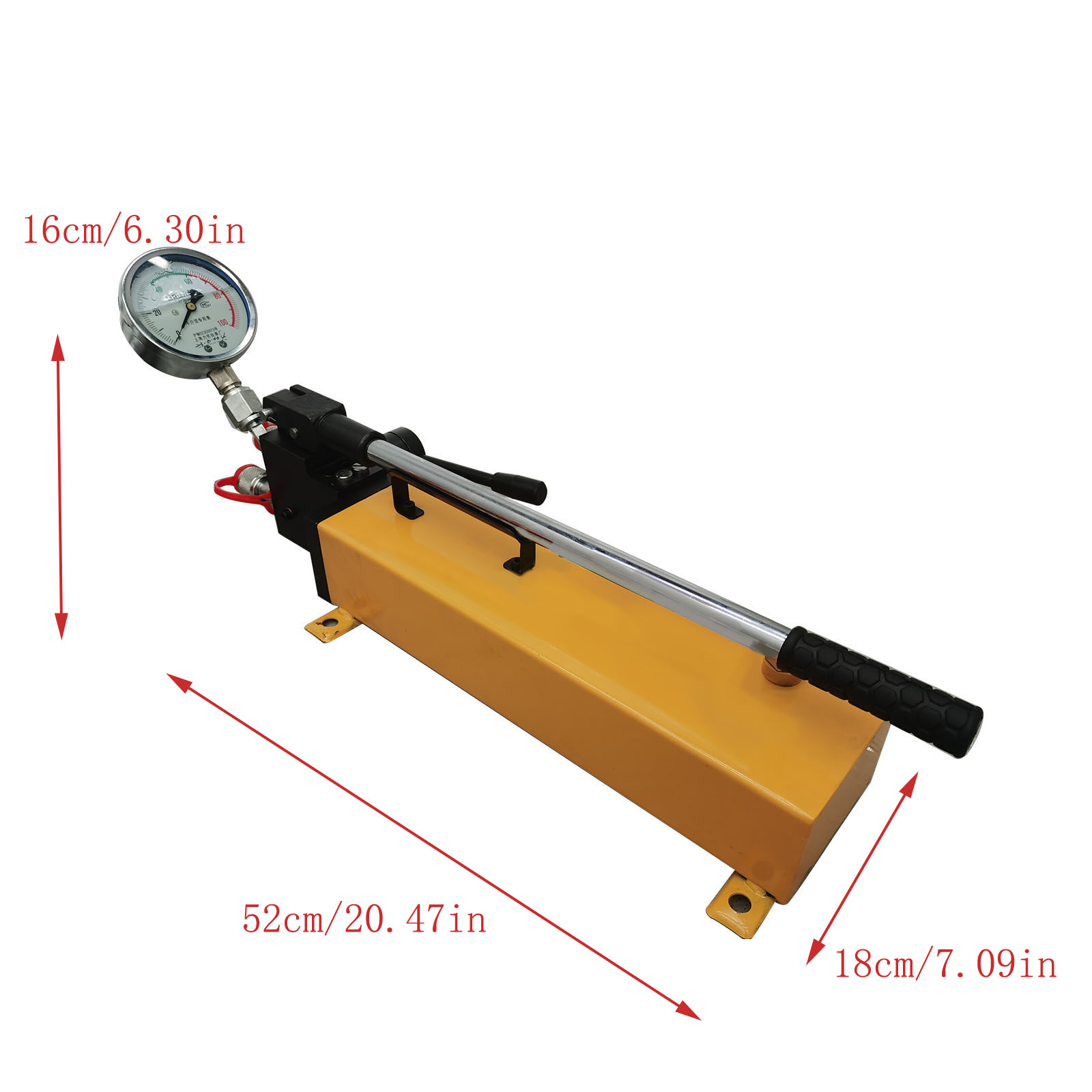

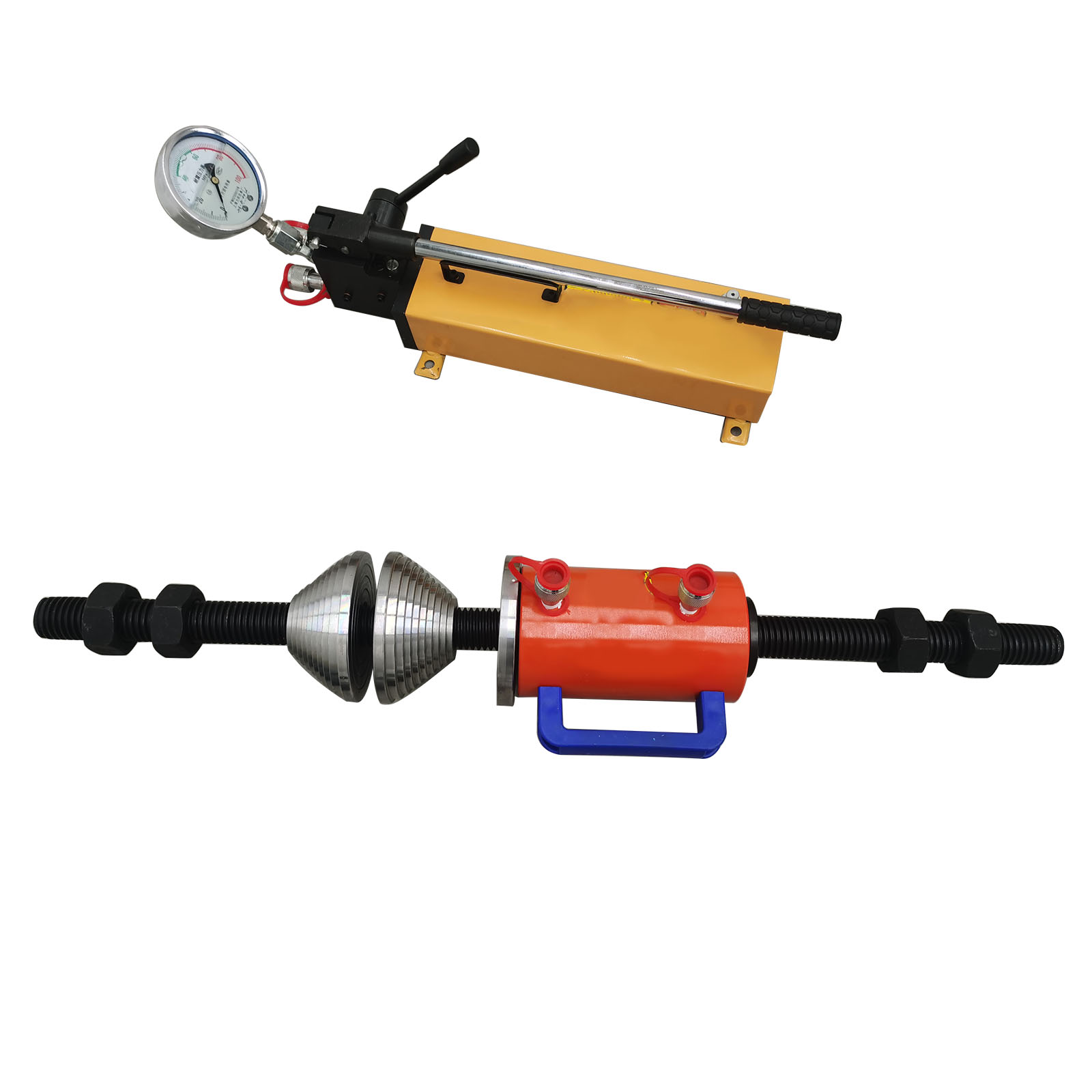

Product information

http://topseller365.com/data/prd/022/741/5.jpg

 http://topseller365.com/data/prd/022/741/chicun.jpg

http://topseller365.com/data/prd/022/741/chicun1.jpg

  • Product Name:30T Excavator sleeve pressing machine
  • Weight:66.75kg
  • Pressure sleeve range:<120mm/4.72in
  • Screw diameter:40/50mm(1.57in/1.96in)

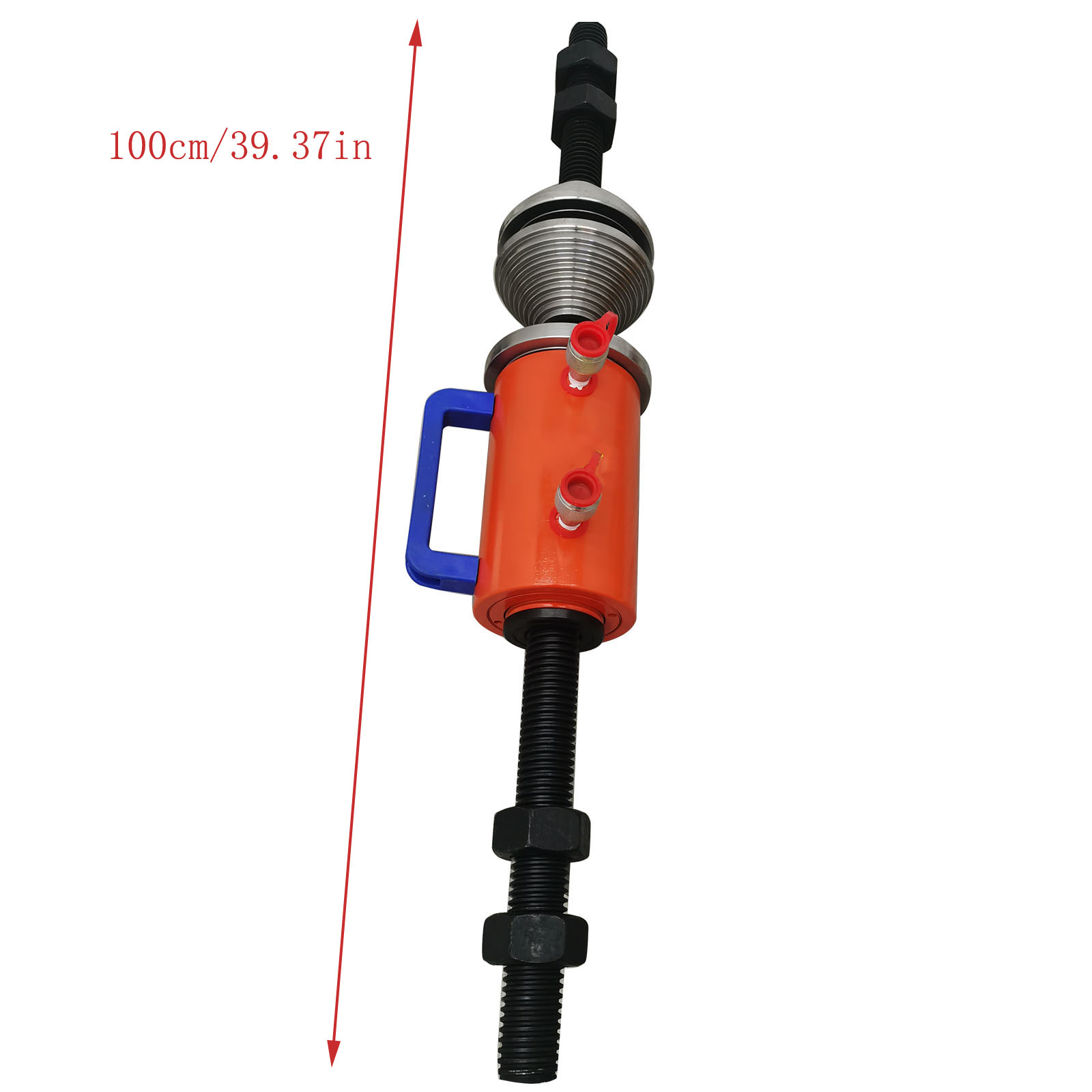

  • Screw length:1000mm/39.37in
  • Operating pressure:0-63Mpa
  • Pump station volume:16L
  • Note:There will be a little error in manual measurement.
  • This product is an ultra-high pressure manual pressure, liquid addition, and hydraulic pump.
  • Working medium is 46 hydraulic oil.
  • When refueling, try to fill it up as much as possible to prevent the hydraulic pump from suction empty.
  • When using it for the first time, fill the oil tank with hydraulic oil and press the hydraulic pump several times to clear the air inside the pump body (otherwise the pressure rod will rebound).
  • When the oil pump is working, the vent tip on the vent valve or the oil tank sealing cap needs to be loosened counterclockwise,otherwise the pump will experience oil leakage.
Applications

http://topseller365.com/data/prd/022/741/1aaa.jpg



Product advantages
  • Improve replacement efficiency and reduce labor intensity.
  • Replace the manual hammering method to ensure that the steel sleeve is intact and not damaged.

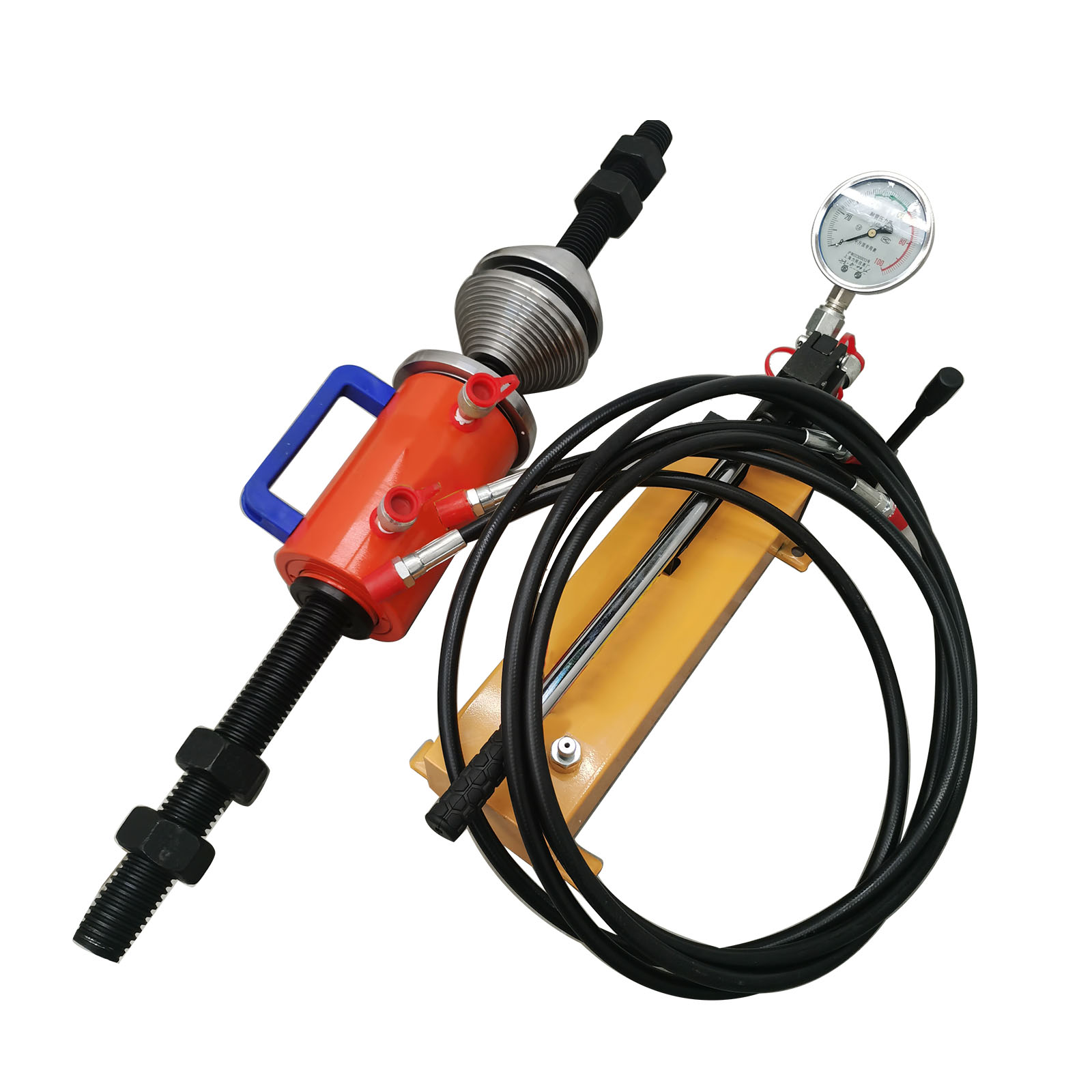

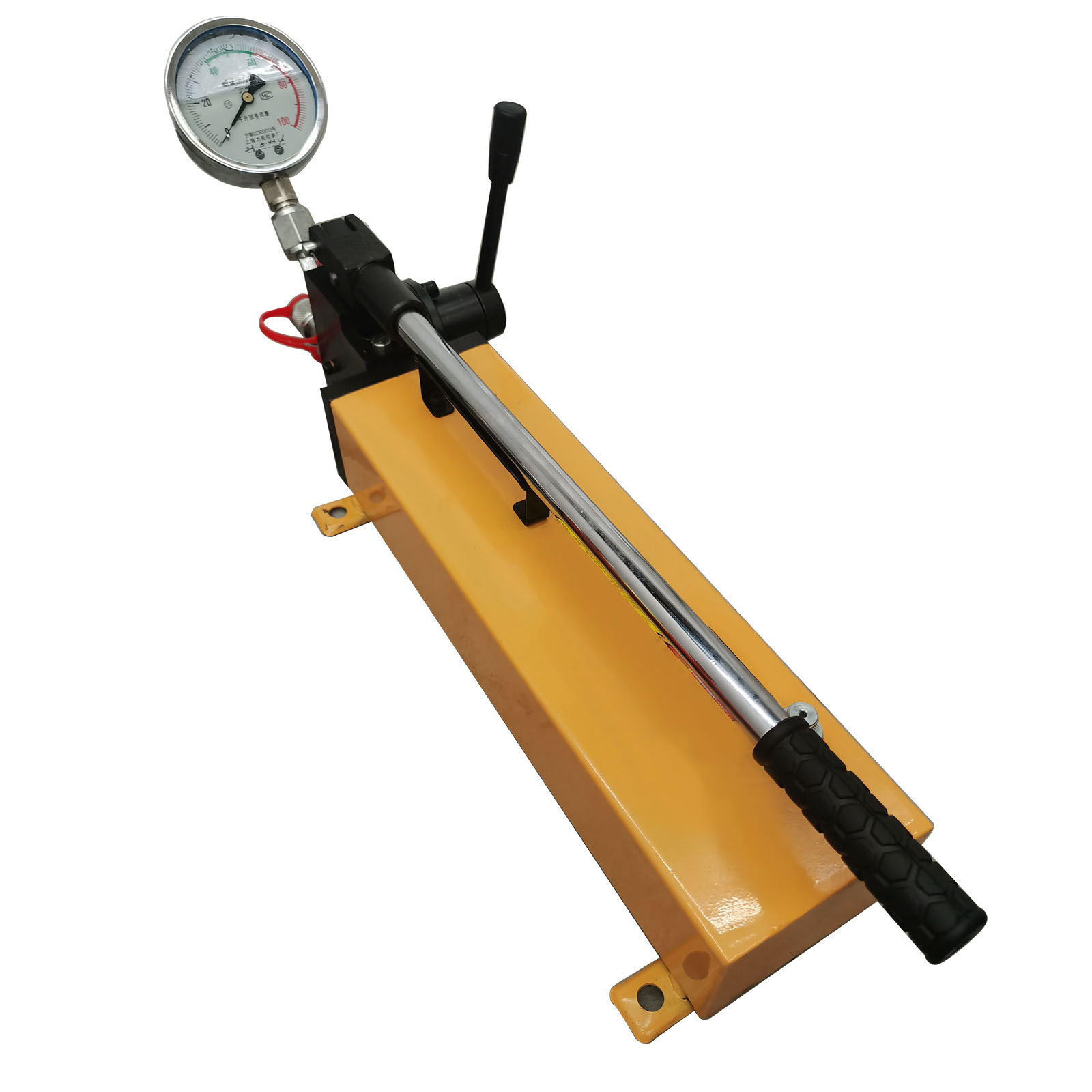

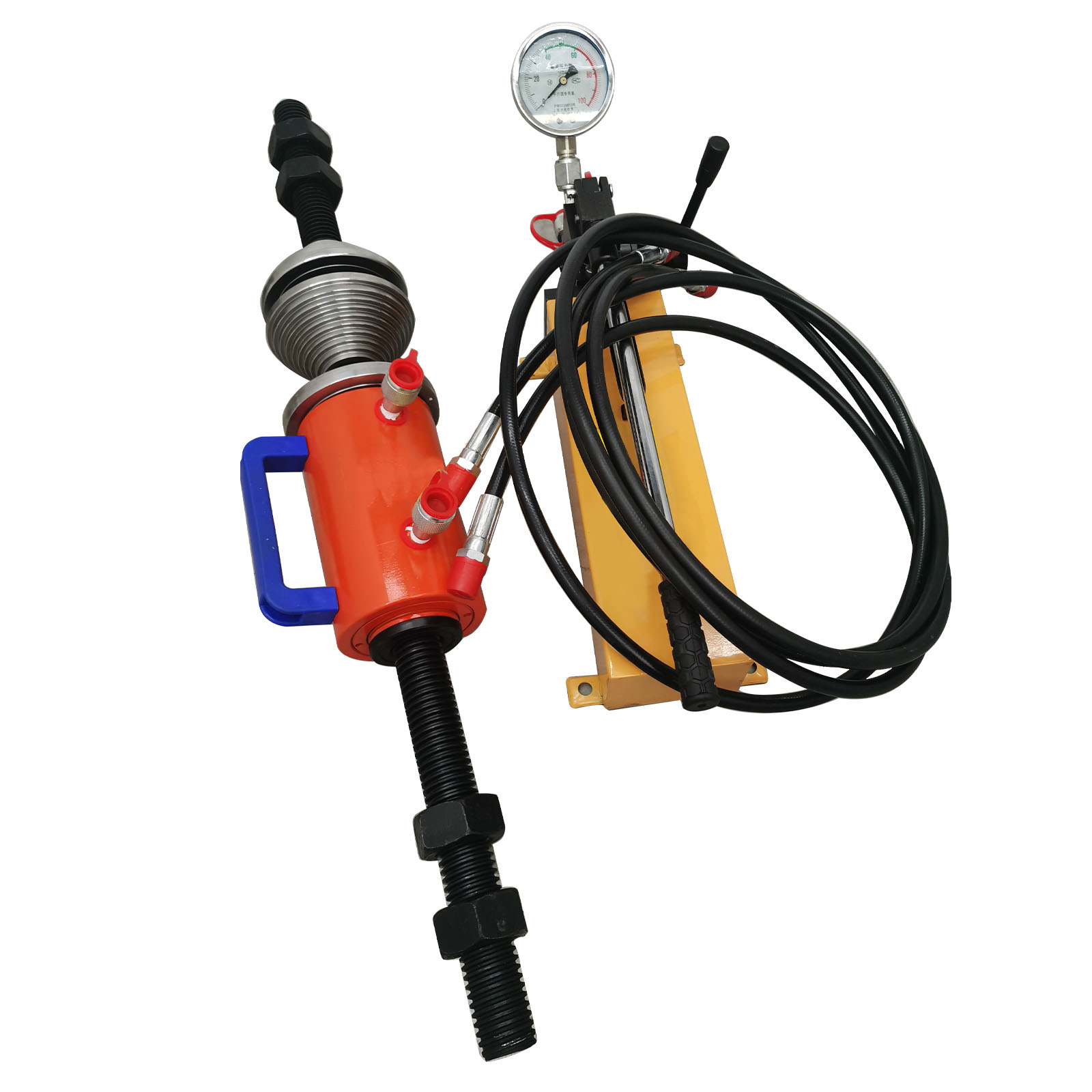

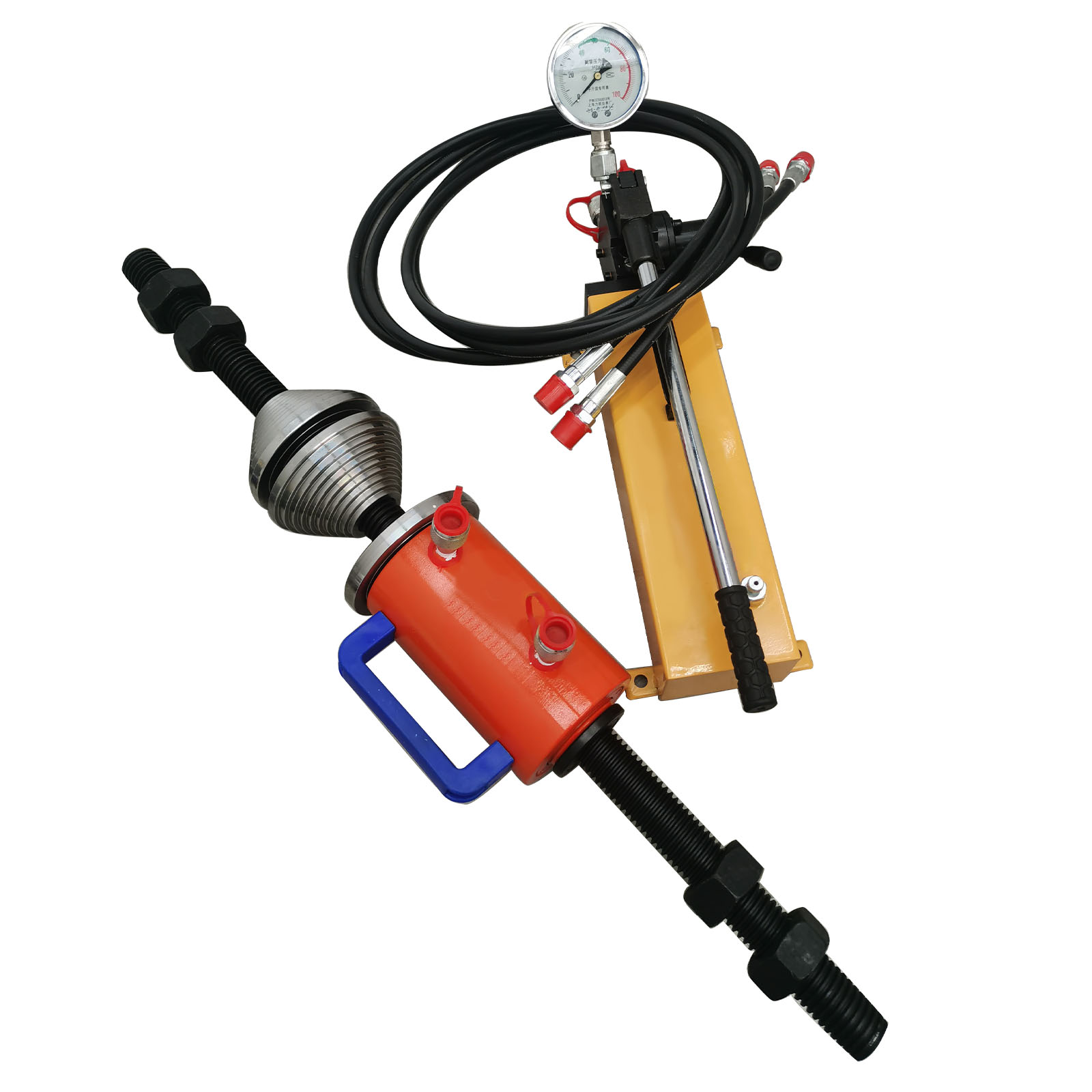

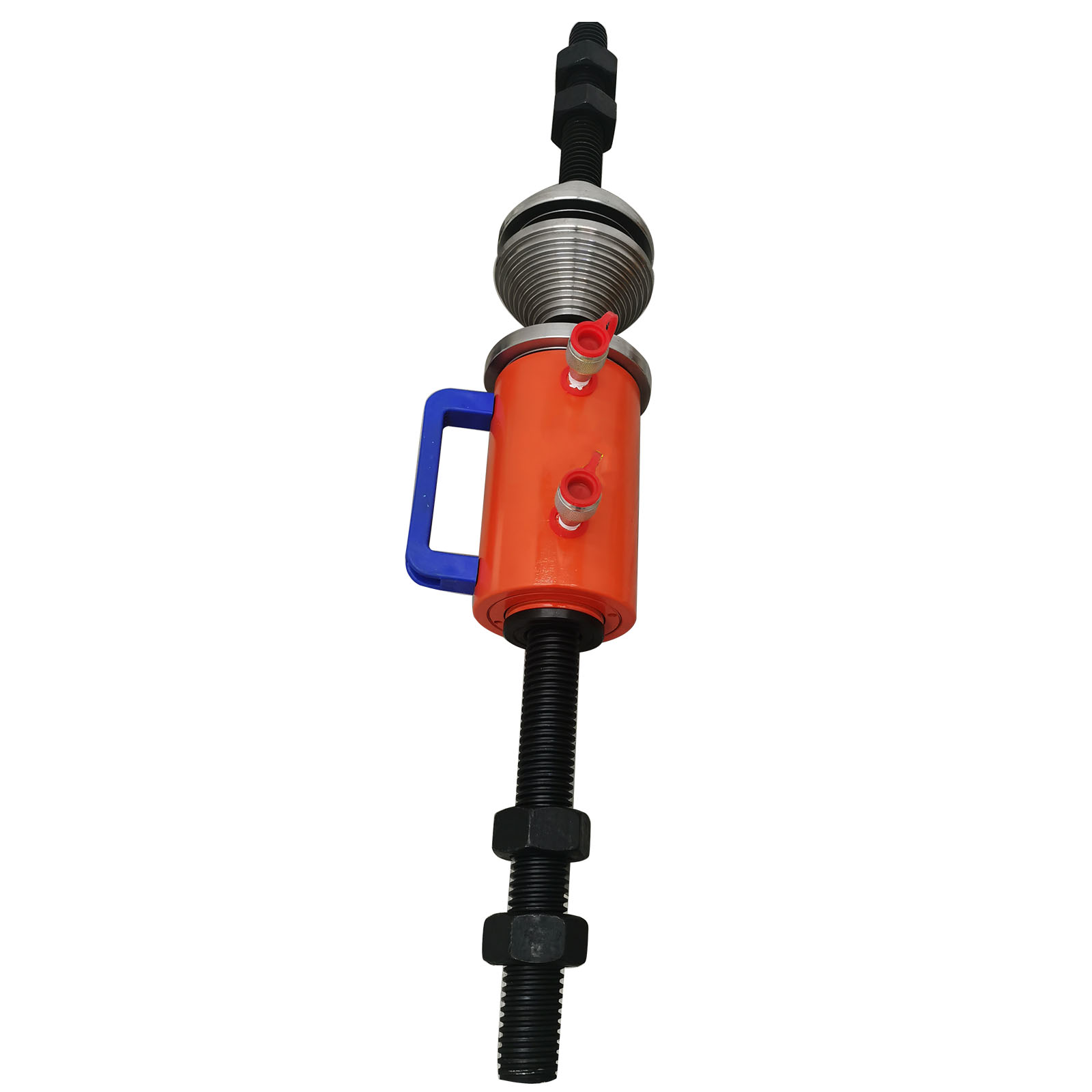

Product Photograph

http://topseller365.com/data/prd/022/741/2.jpg

http://topseller365.com/data/prd/022/741/14.jpg

http://topseller365.com/data/prd/022/741/13.jpg

http://topseller365.com/data/prd/022/741/11.jpg

http://topseller365.com/data/prd/022/741/1.jpg
