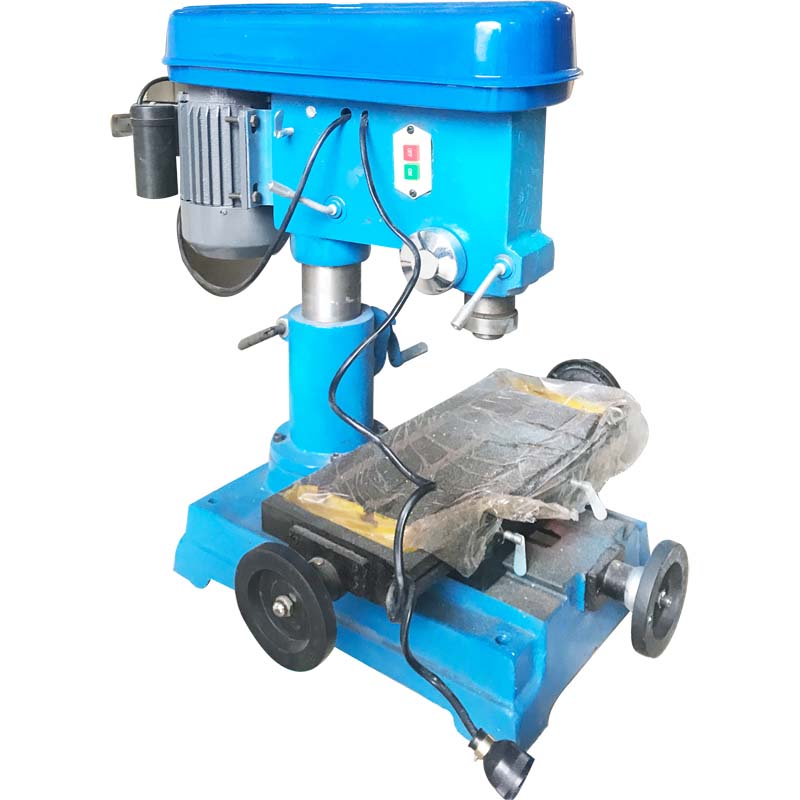

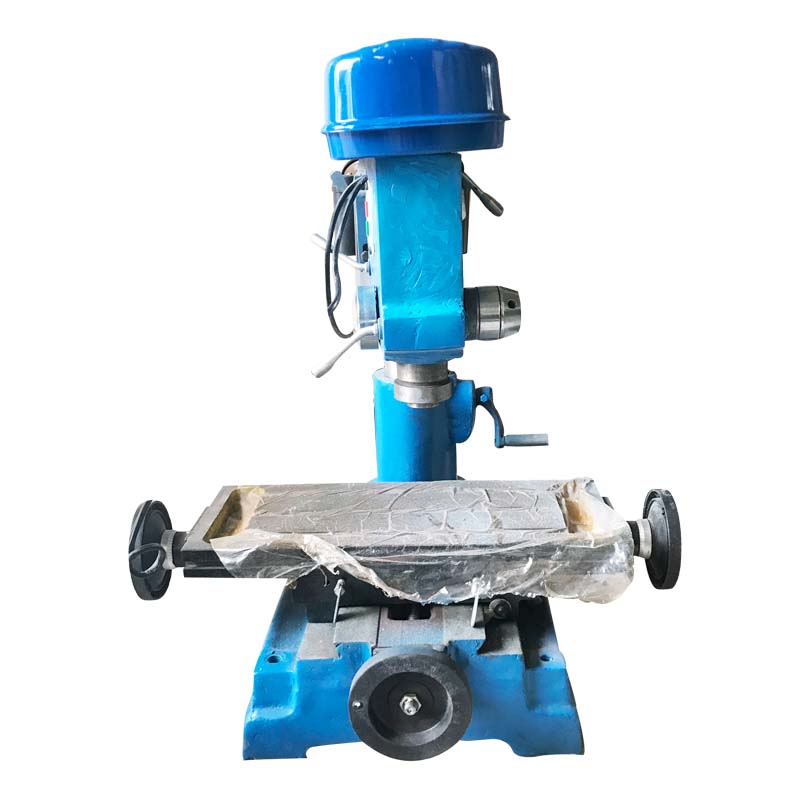

Used 110V 1100W Milling Machine
https://buyyou.net/cbe/data/prd/023/378/%E6%9C%AA%E6%A0%87%E9%A2%98-2.jpg

Specifications :

Material:

High quality stainless steel

Dimension:

35.83"*29.92"*35.43"
 (91cm*76cm*90cm)

Voltage:

110V 60Hz

Power:

1100W

Weight:

308lbs
Max distance spindle to table: 410mm/16inch
Spindle taper: MT2
T-slot: 10mm /0.39 inch
Spindle speed:
           250 - 3200rpm
X-Axis Travel Bed:   220mm/8.66 inch
Y-Axis Travel Bed:
        110mm/4.33 inch
Z-Axis Travel Bed: 350mm/13.78 inch
Table Size: 500*200mm/19.6x7.8 inch
Max Drilling Diameter:
20mm/0.78 inch

Max Diameter of end milling:
　
40mm/1.57 inch

　
Max Vertical Milling Diameter: 10mm/0.39 inch

Longitudinal travel:
100mm/3.94 inch
Cross travel:
230mm /9.05 inch
Spindle stroke: 90mm /3.54 inch


https://buyyou.net/cbe/data/prd/023/378/a.jpg
https://buyyou.net/cbe/data/prd/023/378/IMG_1960.jpg
Notice:

 1. Use the chuck to hold the workpiece firmly. Then use the center to fix the other end. If you change the center to drilling chick you can start your drilling immediately.
2. Use the chuck to hold the workpiece firmly, and the cutter to start lath's face cutting(edge of the cutter must be at the same height as the center)
3. By changing the tool post angle and adjusting the compound rest, you can do internal cutting.
4. After adjusting the angle of the compound rest, you can do bevel cutting.
Details：
https://buyyou.net/cbe/data/prd/023/069/1.jpg

Description：

A quality precision, hobby, modelling mini milling and drilling machine is used for milling/drilling mild steel, non ferrous, brass, aluminium, and plastic etc, making mini parts, prototypes, model works, and much, much more. Ideal for use in R & D labs, workshops in model engineering and educational settings
Heavy duty cast iron body and base for better stability, precision machined table, spindle tilts to allow angle milling, variable speed and control knob, well balanced single phase, 110volt motor for smooth operation
https://buyyou.net/cbe/data/prd/023/378/%E6%9C%AA%E6%A0%87%E9%A2%98-1.jpg
Features:

1. High-quality stainless steel
2. High-efficiency performance
3. Simple operation, long service life, high efficiency, power save
Item Included(023378):
1* Mini Milling Machine
