M9500A Battery Charger Engine Starter 220V

Applicable vehicles：Small and medium vehicles such as car, light truck and medium truck.
Product parameter:
Model：M9500A
lnput voltage：220V
Output voltage：12V charging：9.5-16V
                       24V charging: 20-29V
Overload protection:Power outage
lnstantaneous starting current:3500A
Maximum charging current:300A
Maximum charging capacity:3500AH
Charging gear:6
Starting gear:1

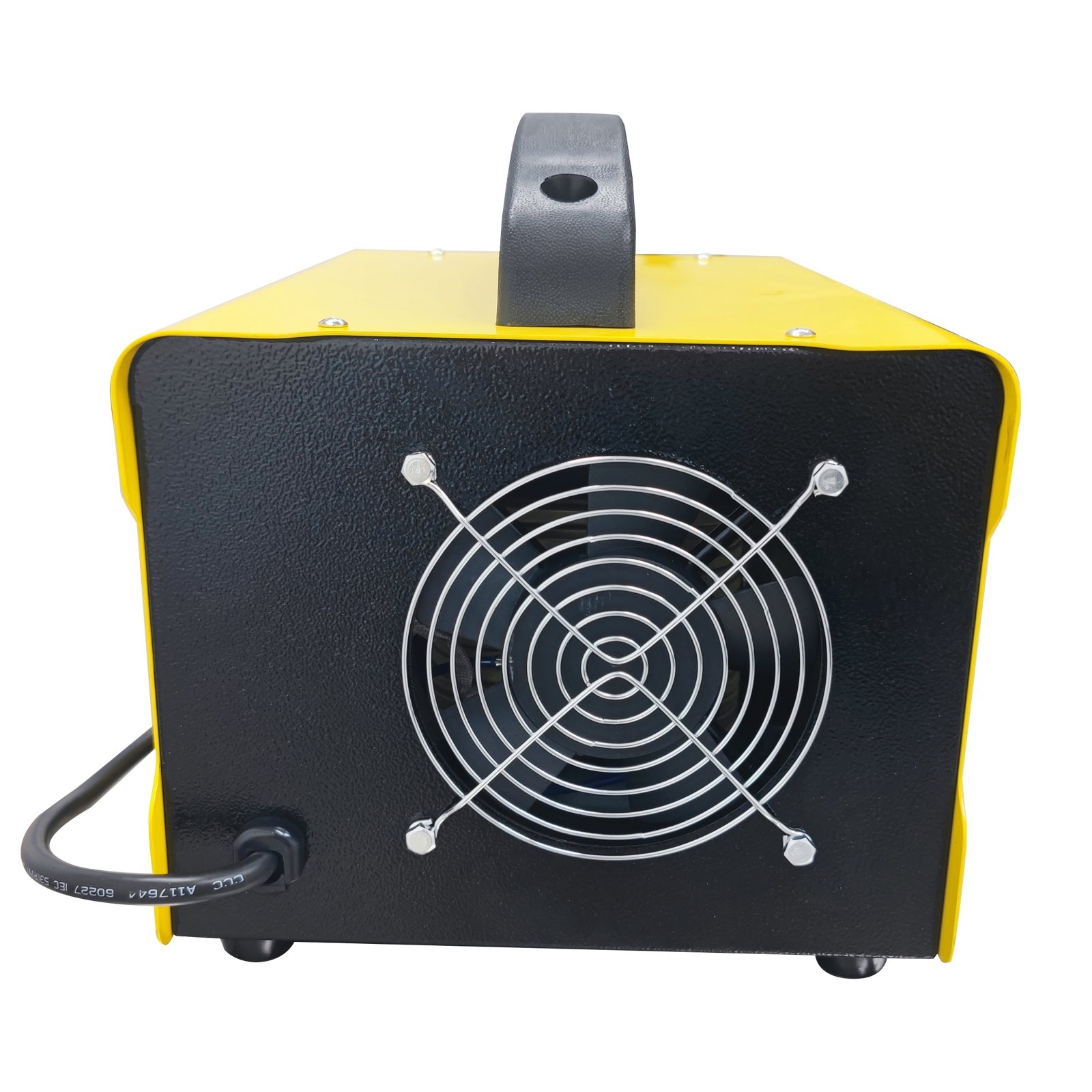

Heat dissipation mode: Air cooling

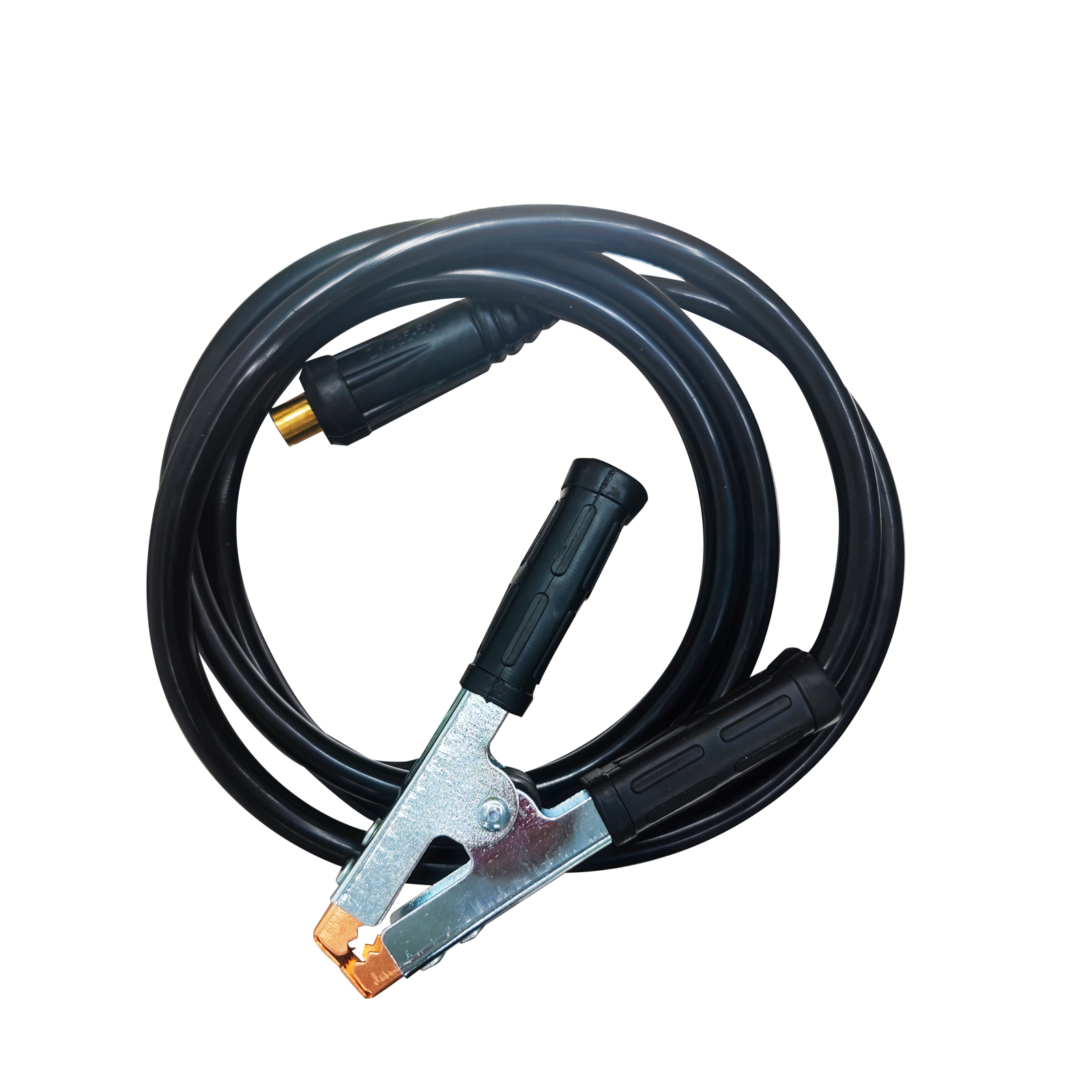

Battery connecting line：35mm²*2m
　
Features：
1. All copper core transformer.

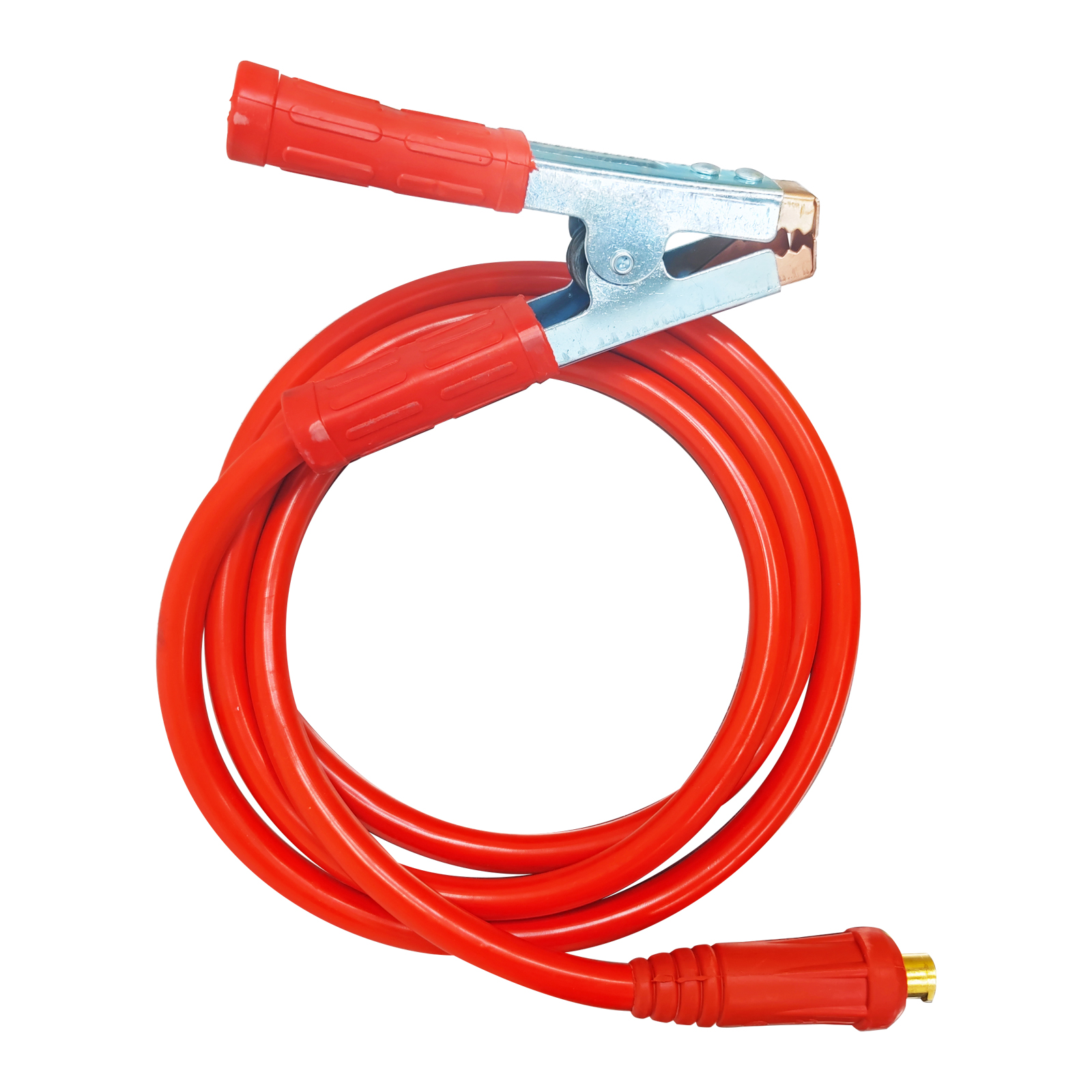

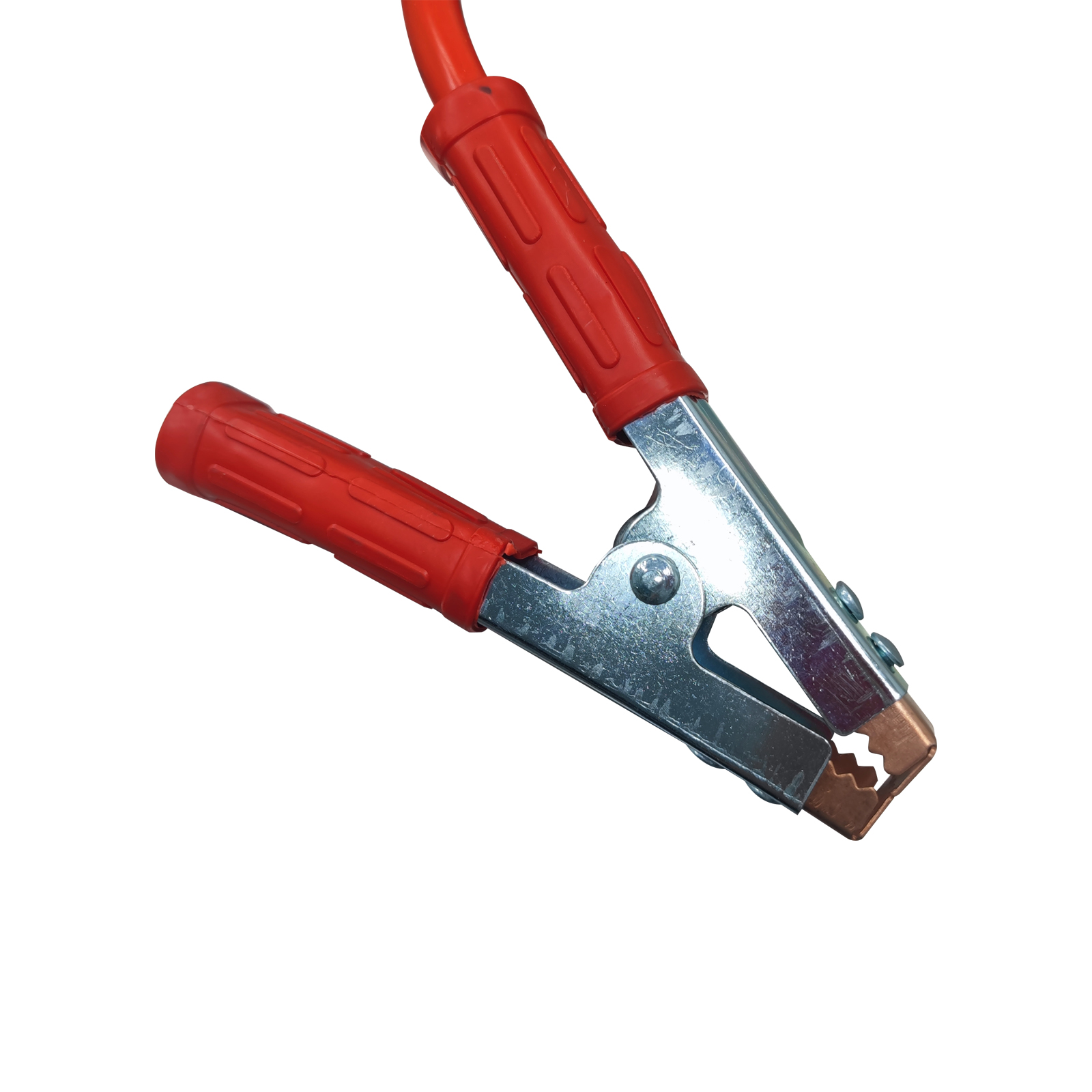

2. High-power special battery clamp, excellent electrical conductivity, copper plating process, greater current.

3. All copper insulated wire terminals, bakelite insulation is safer.
　
Charging method：

1. Before use, confirm the input voltage, connect the power supply, turn on the electric switch, and check whether' it works normally. It mainly depends on whether the voltmeter displays and whether the power indicator is on.

2. After connecting the charger and the battery, confirm that the positive and negative are correct, connect the power supply after the voltage matches, adjust the current switch clockwise from small to large, or select the starting gear to maximize the current.

3. When using the charging function, the liquid filling plug of the battery should be unscrewed before charging, and the charging environment should be well ventilated, otherwise a large amount of gas will overflow, which may cause adverse consequences (maintenance free battery does not have this item).The charging must be connected to the corresponding terminals, and the positive and negative marks must be distinguished. The wiring must be tight and reliable, otherwise the equipment will be easily damaged.

4. When charging slowly, the priority value of charging current is 10% of the capacity of the charged battery (or battery group), and the charging time is not more than i4 hours. When charging with high current (charging fast), the charging time is according to: charging current (A) times charging time (H)is not greater than the capacity of the battery. The recommended charging time is between 60 and 120 minutes.

5. When charging multiple batteries at one time, the following connection modes shall be adopted.

Details：

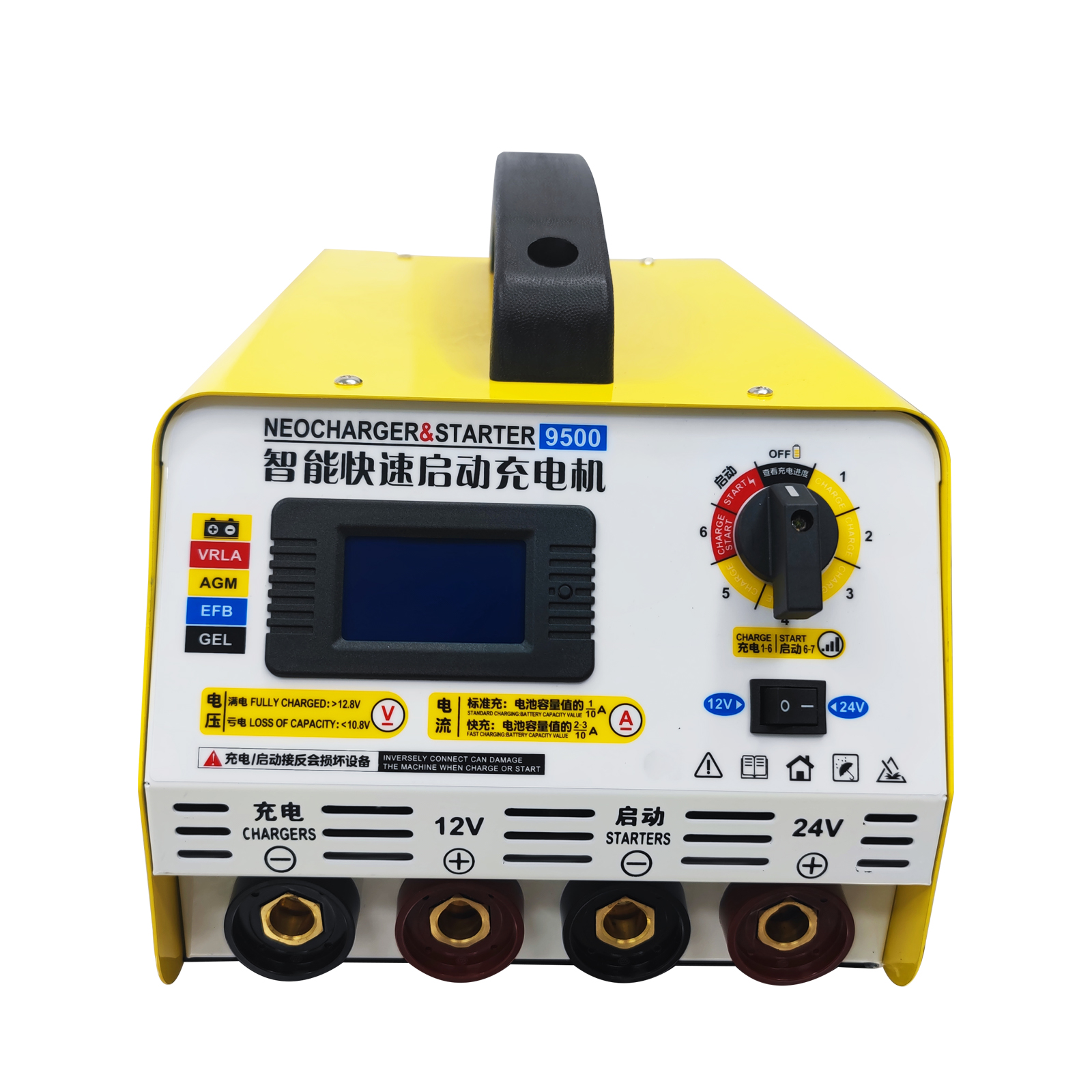

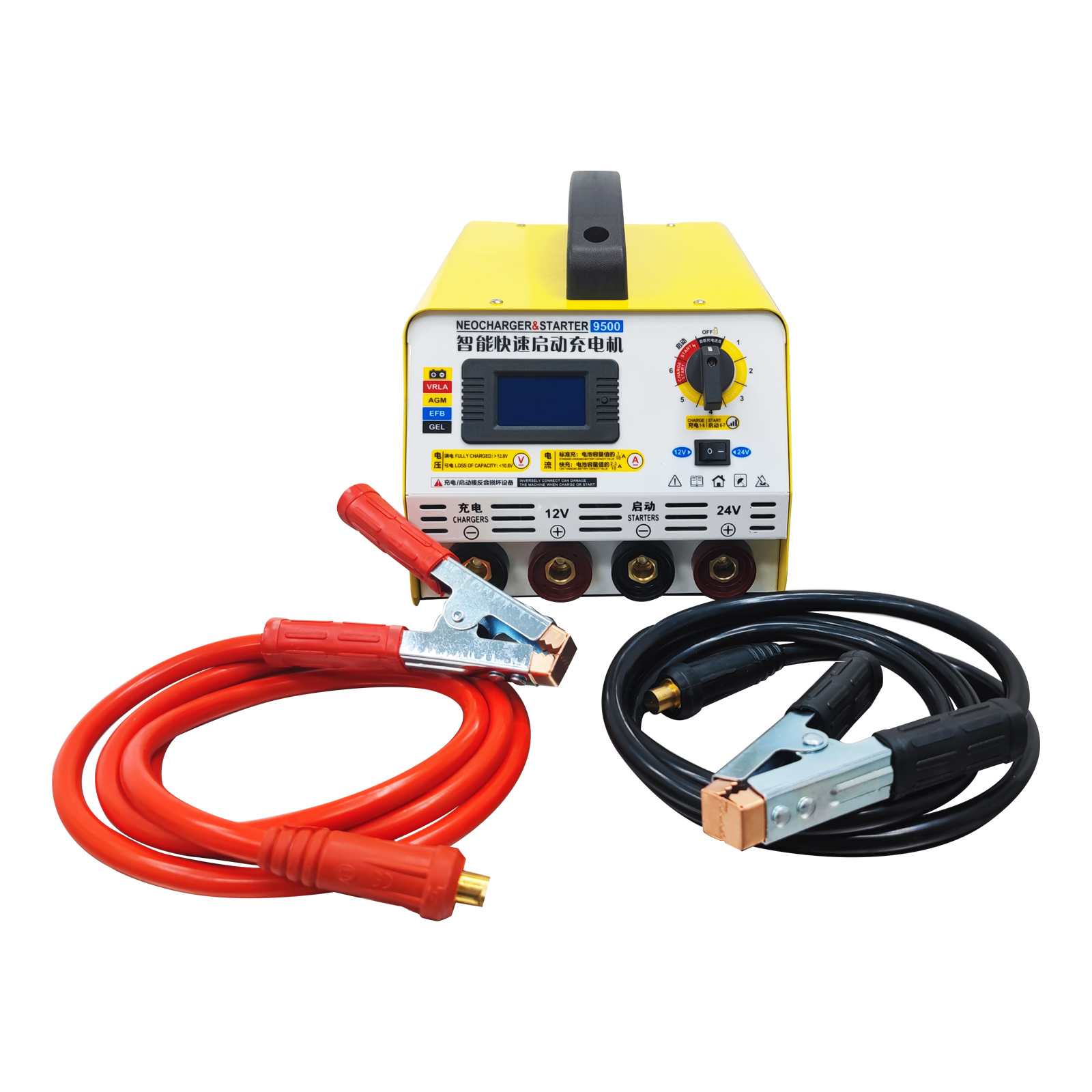

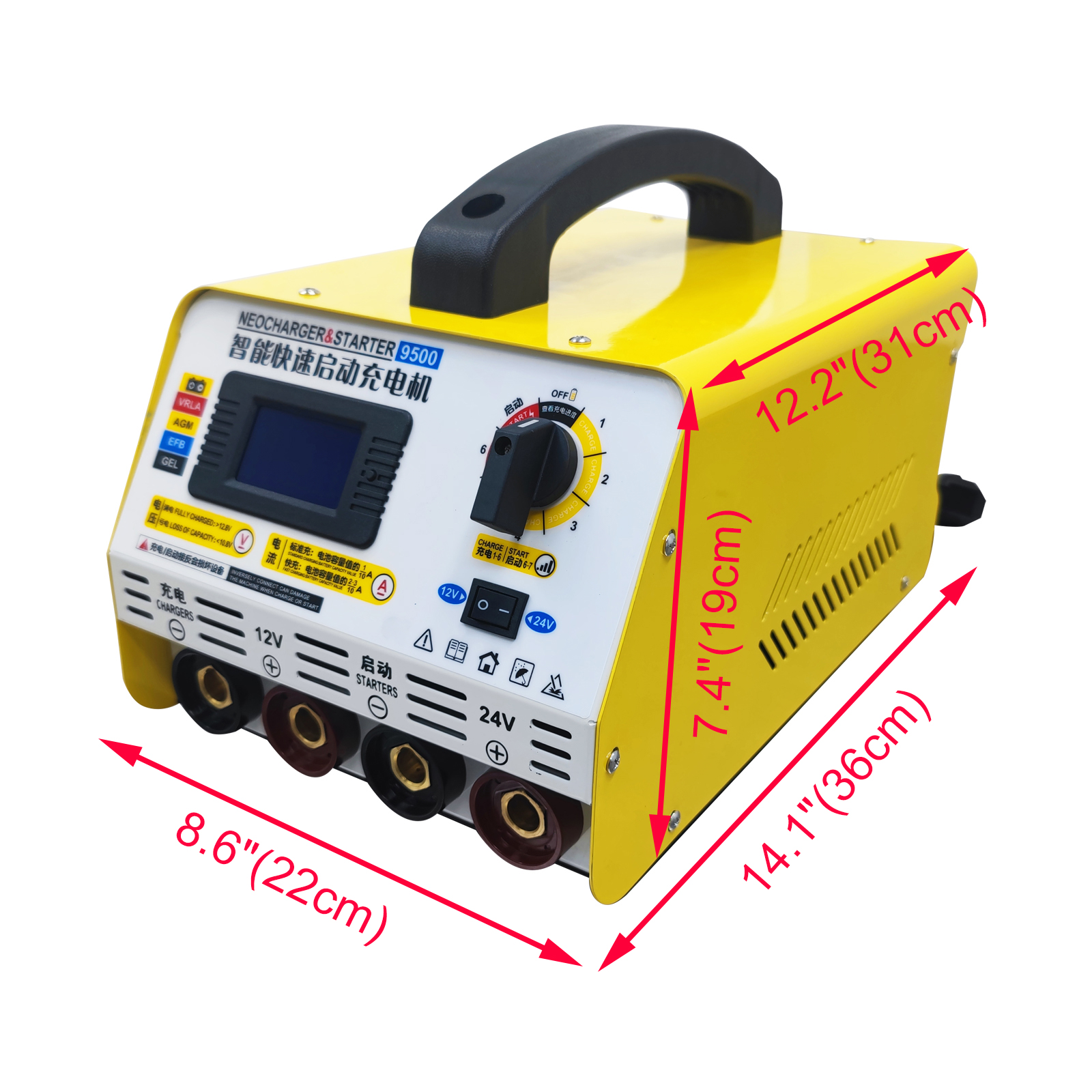

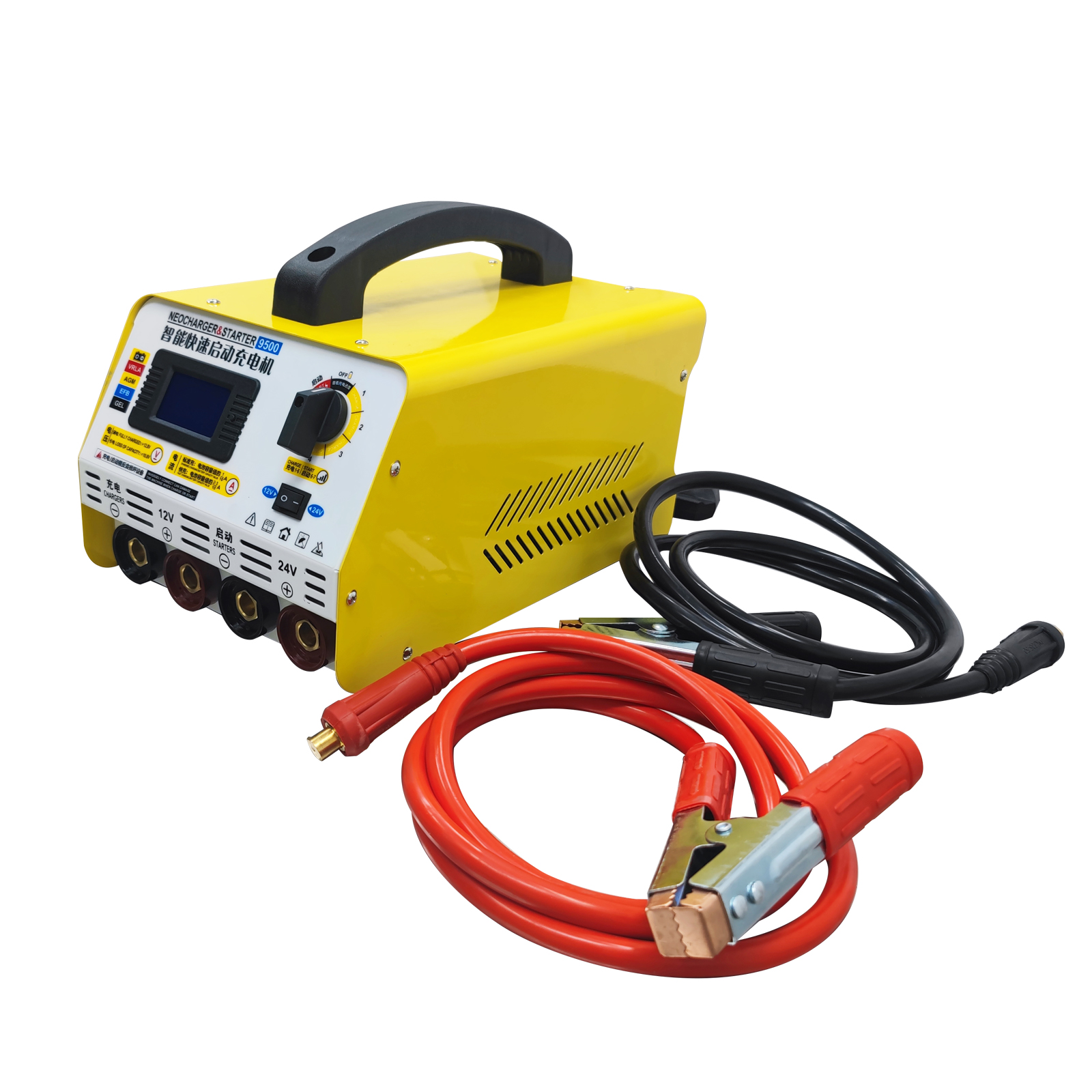

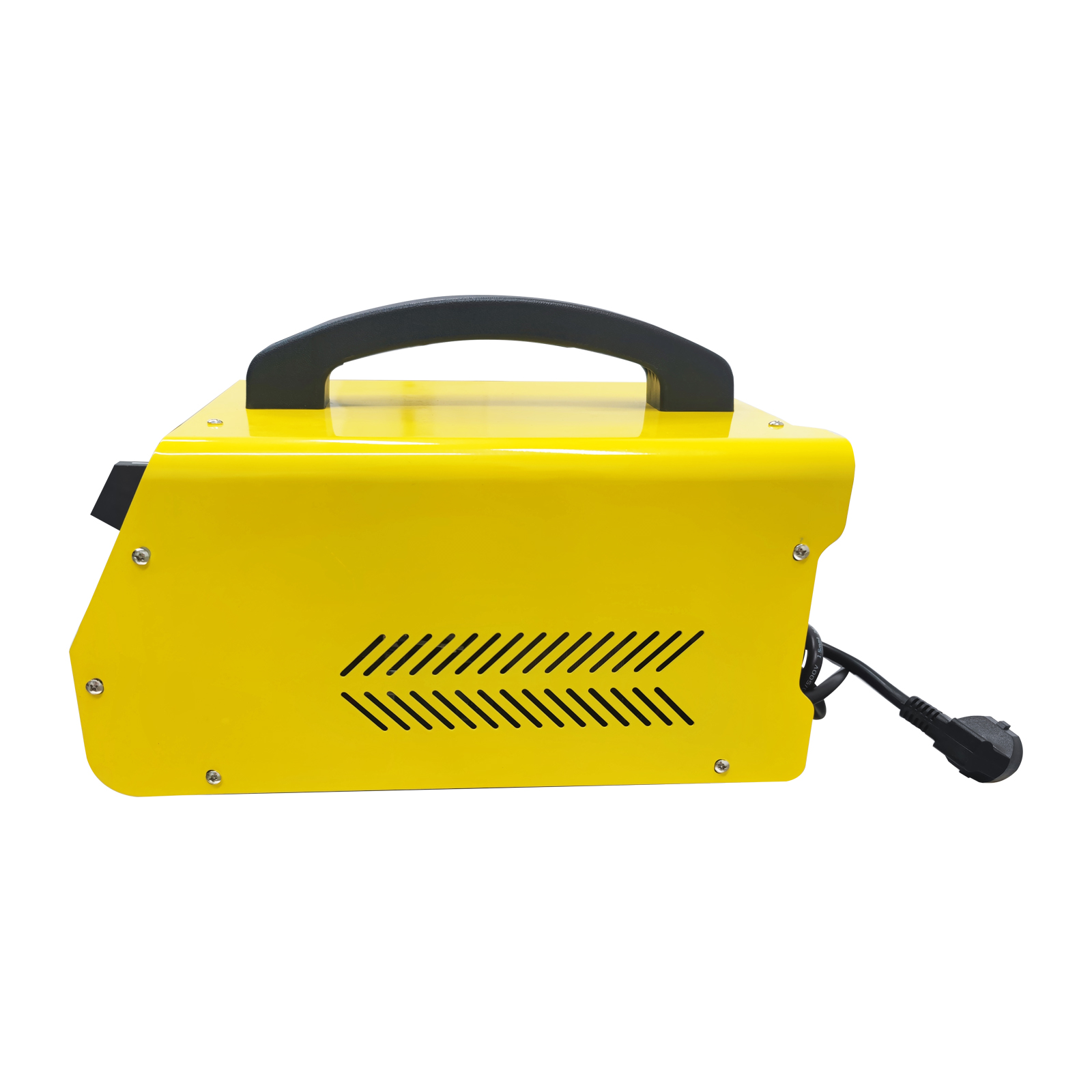

Product display:

Item Number: 1* M9500A Battery Charger Engine Starter 220V (033255)
　
