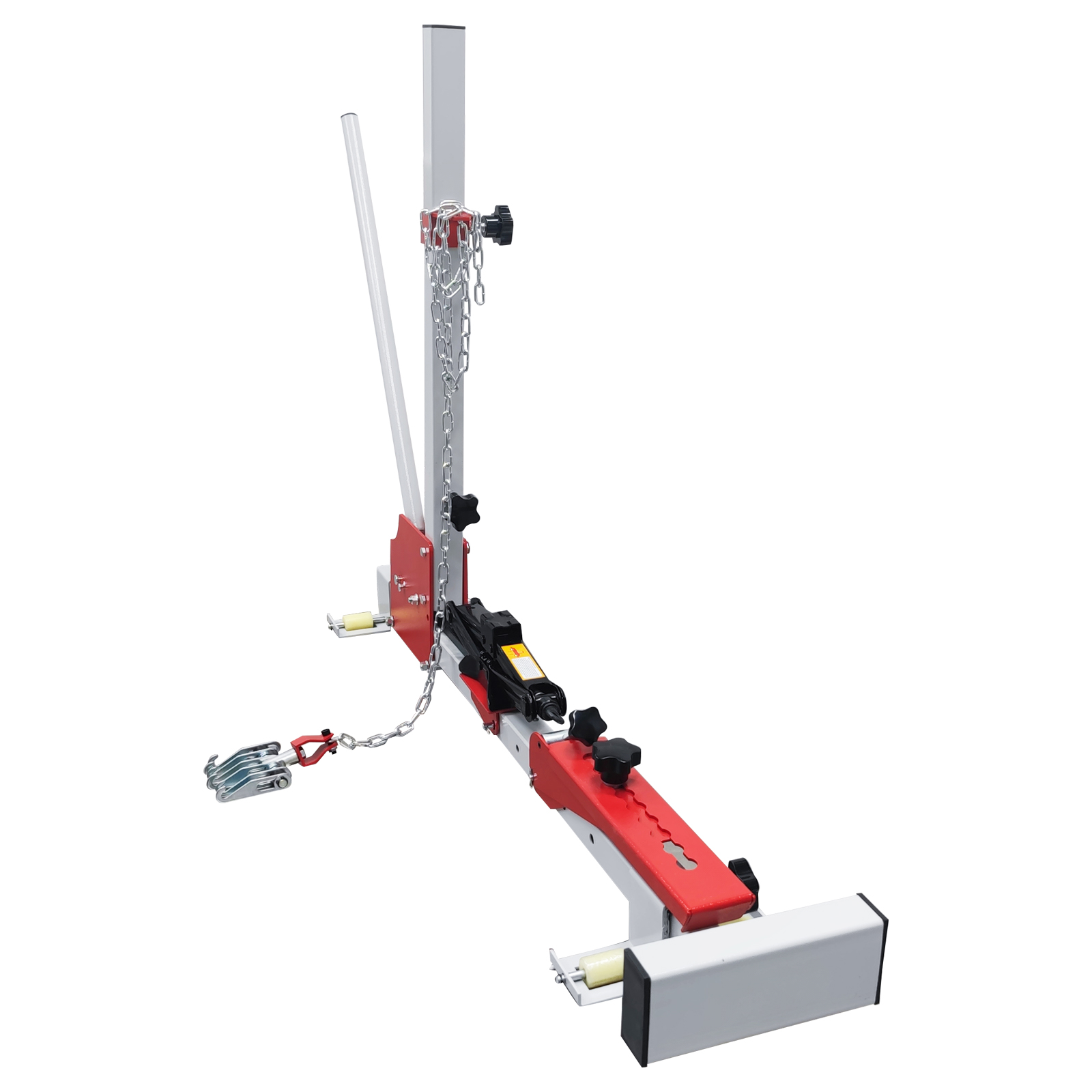

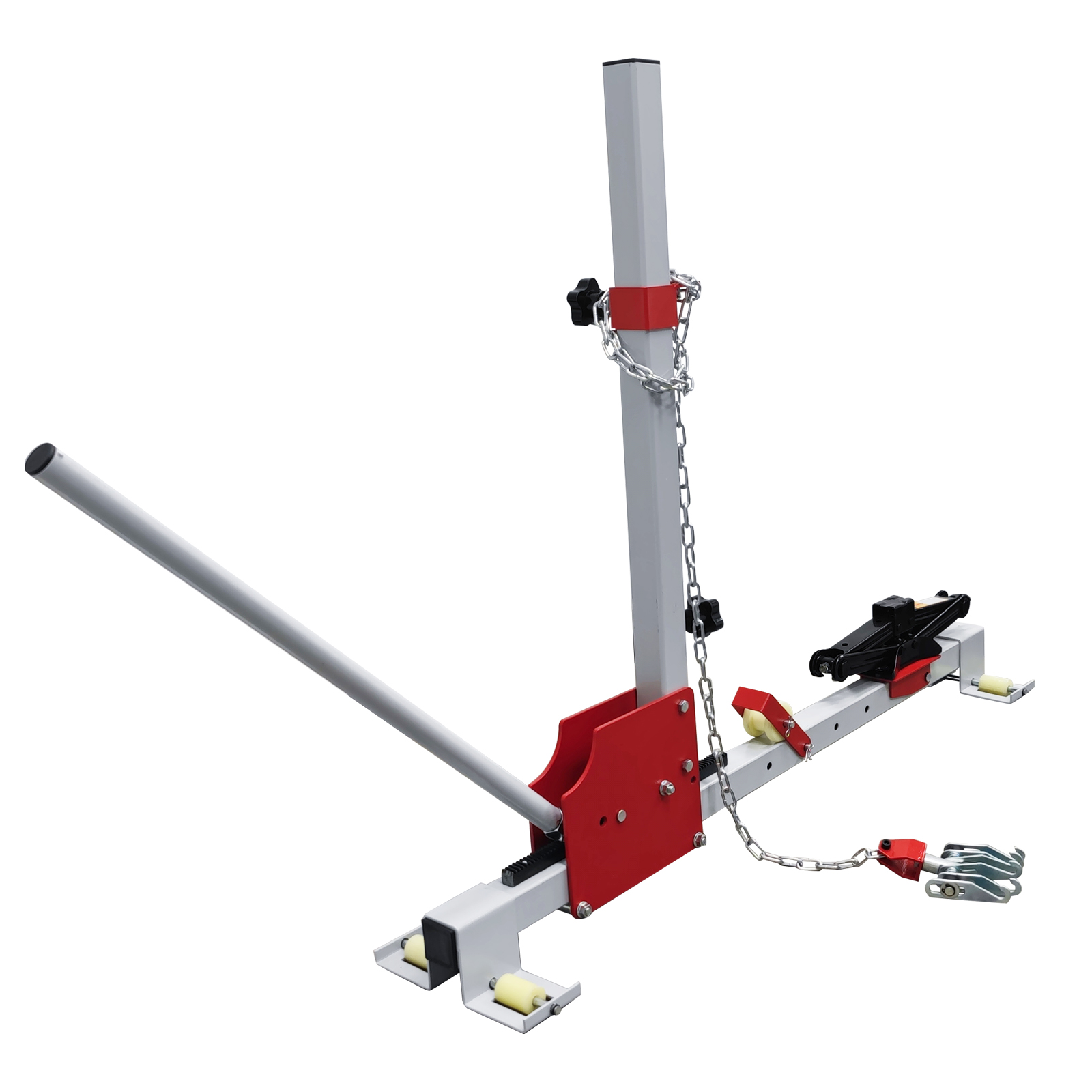

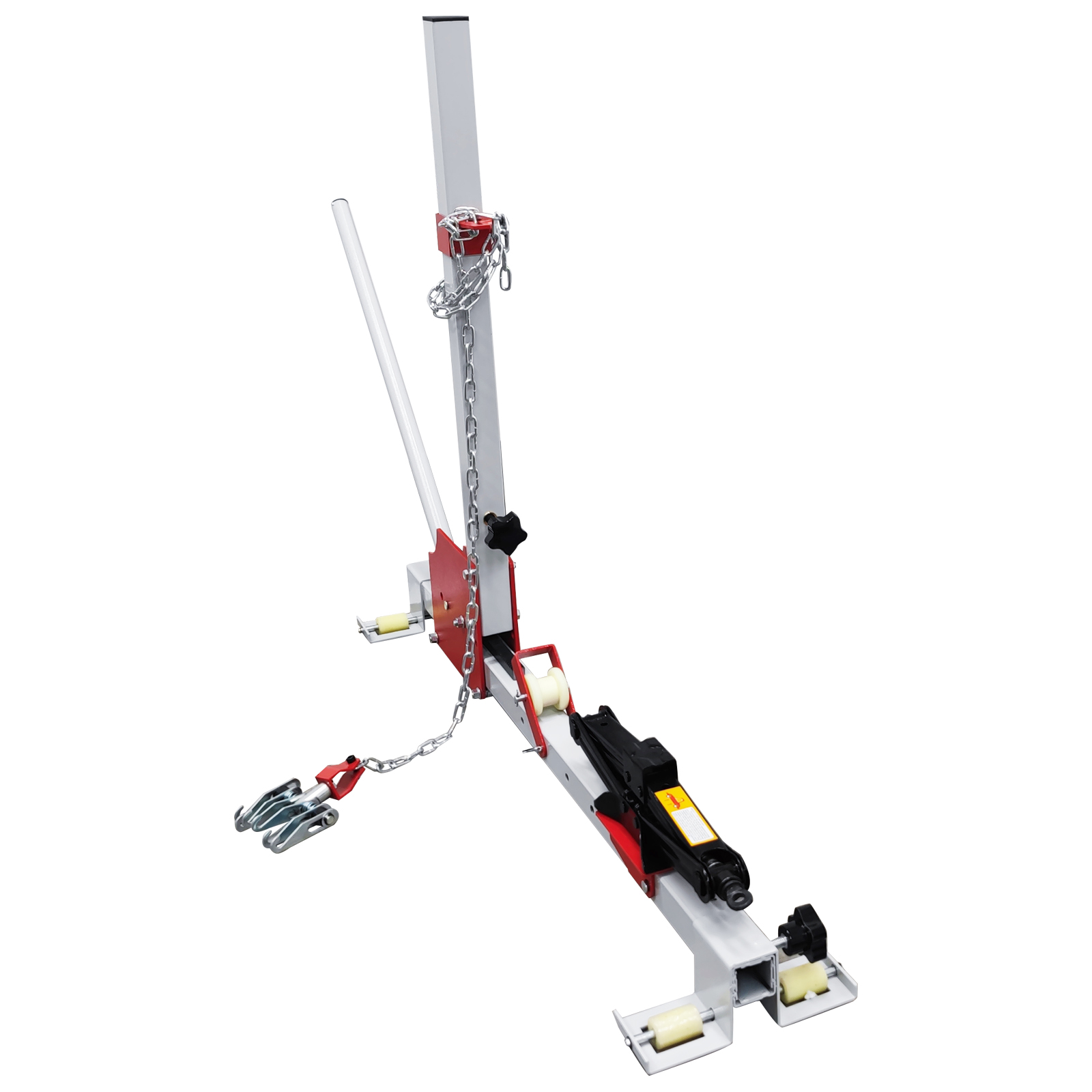

The drawing system is mainly used for the repair of damaged sheet metal in three major positions, such as the door, the lower beam of the door, and the body, and can provide 200kg pulling force on the damaged part. The drawing height and position can be adjusted, the pulling direction can be adjusted, and the pulling strength can be adjusted to make the maintenance easier.

Parameters:

Material：Carbon steel

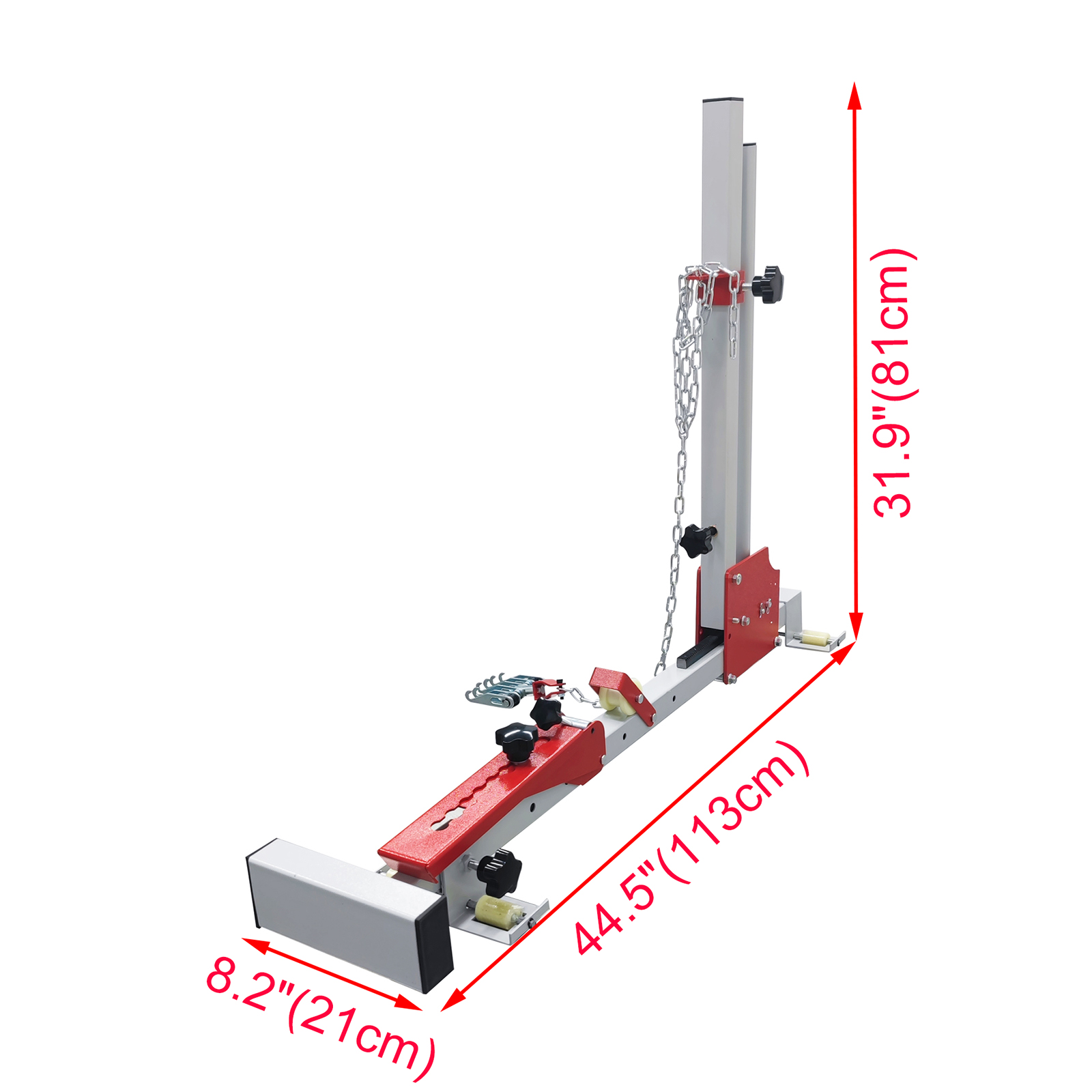

Height range: 100-800
Maximum pulling force: 600KG

1.   The safety locking mechanism is added to prevent the chain from falling off during drawing, which improves the safety of the product.

2. Multi-hook design, can be used for a single part, single hook drawing, can also be used for large areas of the use of multi-hook pulling together, convenient and efficient.

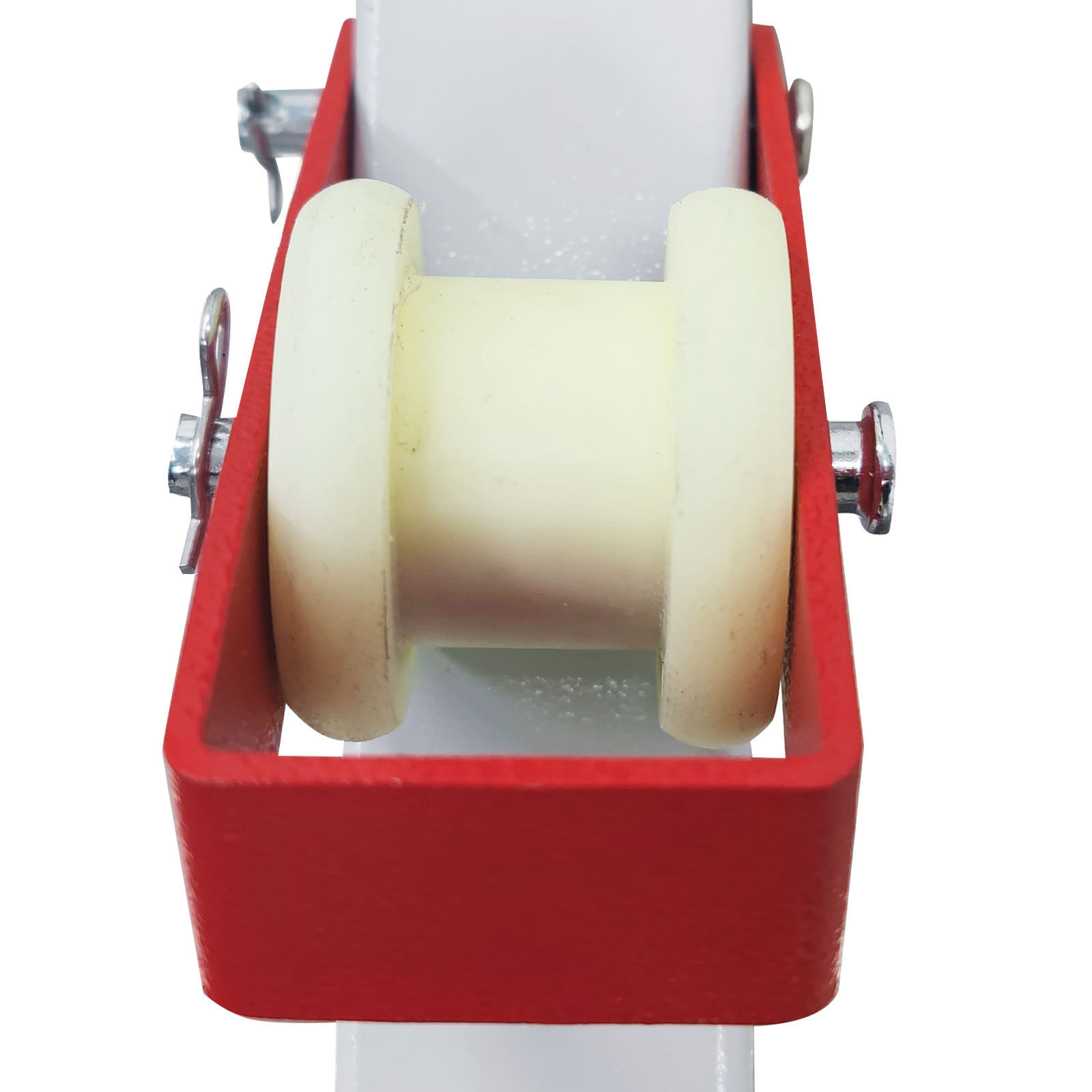

3. Nylon roller is added, and the front and back position of the roller can be adjusted, which can flexibly adjust the direction of the force when drawing, and it is more convenient to use for different shapes of the depression.

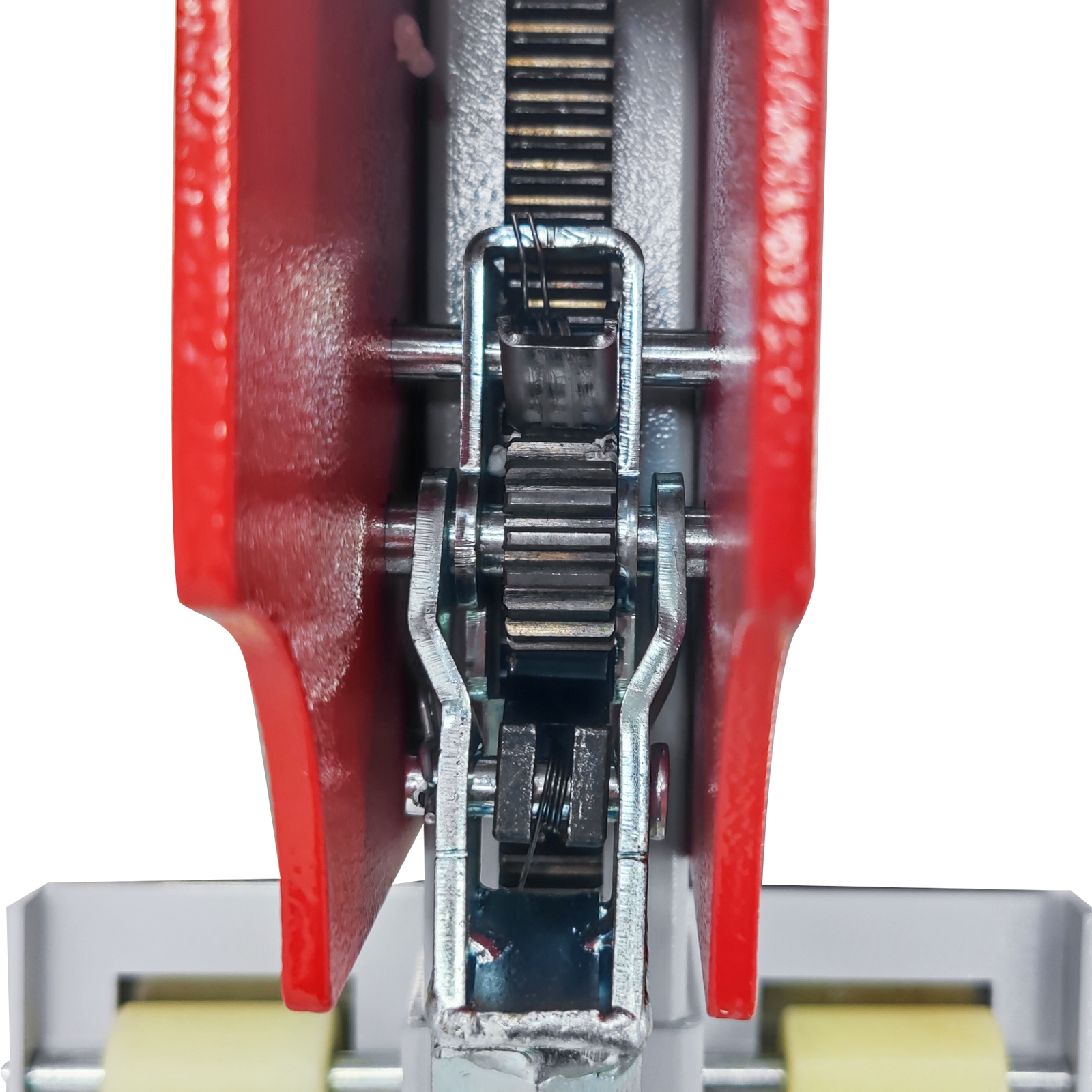

4. Double bearing afterburner, lock and release mechanism is used, the afterburner process is stable, and the tension is larger, and the double bearing lock design improves the safety factor.

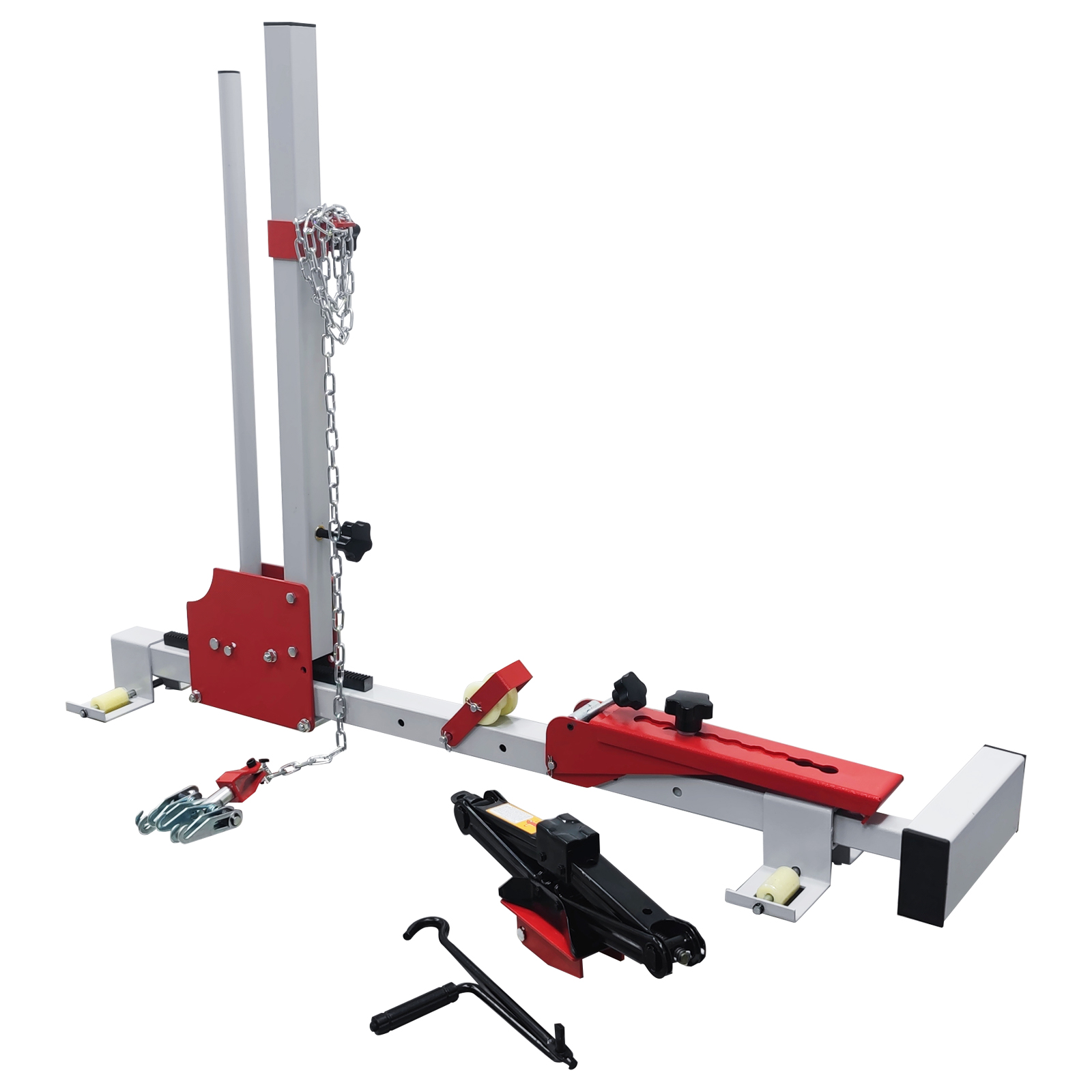

Item included:

You can make order with no worry. .
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
