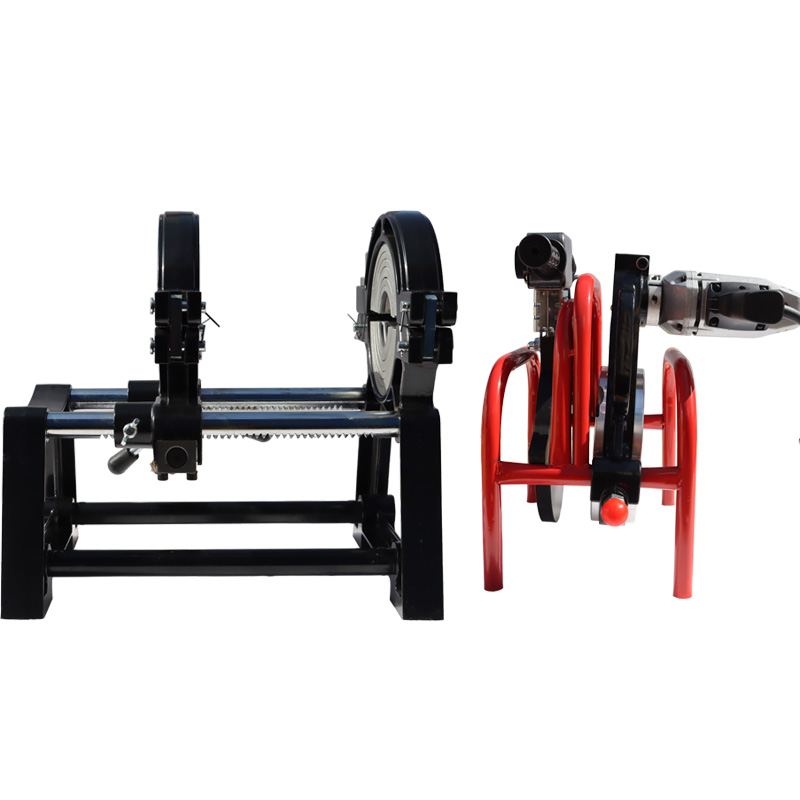

HDPE Butt Fushion Welding Machine

   Manually Operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.
　

Specifications:

Model No.:2.48"-6.30" (63-160mm) two clamps
Welding level(Φ, mm)outer dia: 2.48" (63mm), 2.95" (75mm), 3.54" (90mm), 4.33" (110mm), 4.92" (125mm), 5.51" (140mm), 6.30" (160mm)
Voltage: 110V
Power of Heater: 1.2KW
Power of Milling Cutter:0.65 KW
Environment temperature： -50-+40°c
Materials can be welded： PE PP PB PVDF PPR
