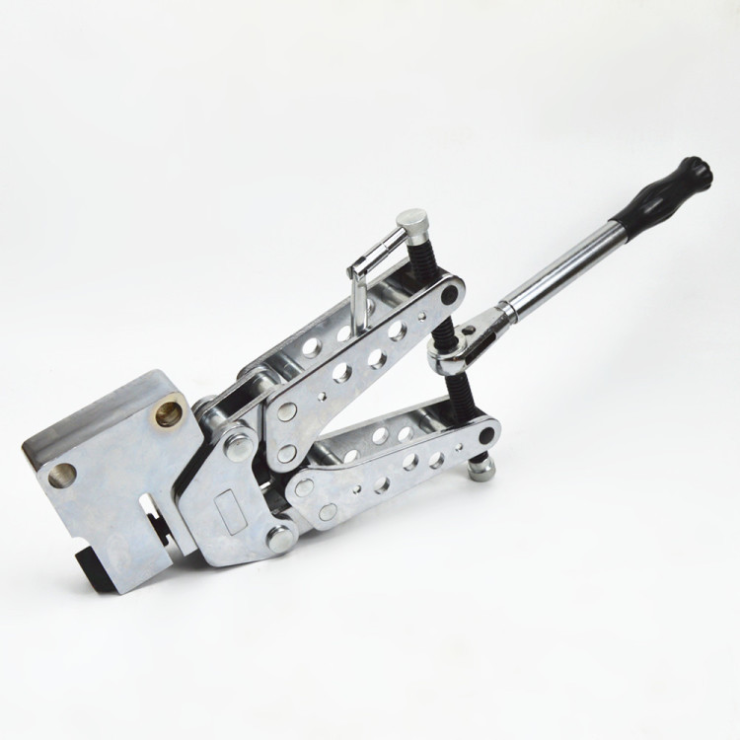

Mechanical punching
machine CKJ-21(148018) |
| |
| |
|
Description |
|
It’s applicated for the overhaul and reinforcement in railway, post, oil
,geology and architecture industry.Because this |
|
machine don’t need the electrical power, so it’s high suitable for
field,underwater,and working aloft. |
|
 |
| |
| |
|
Parameters |
| Model |
CKJ-21 |
| Applicated range |
40-110 |
| Puncher diamter
|
13mm,15mm,17mm,19mm,21mm |
| Allowed thickness of the plate |
<=10mm |
| Power
|
300KN |
| Size
|
14"*10"(36*25cm) |
| Weight |
15kg |
| |
| |
|
Features |
|
1. This
machine used the lever principle ,the screw rod exerts the power ,it’s
easy to operate. High efficiency .
Once
punching only need 20-30 seconds
2. Main
stressed part is made of steel alloy. It’s light and easily carried
3. Lead
screw and feed screw nut should be often filled with oil for lubrication |
| |
| |
|
Details |
  |
  |
  |
| |
| |
|
Item Included:(148018) |
| 1 pc of Mechanical punching machine CKJ-21 with
4 pair moulds |
|
|
