Electric Sieve Electric Stainless Steel Powder Shaker 110V（300D）

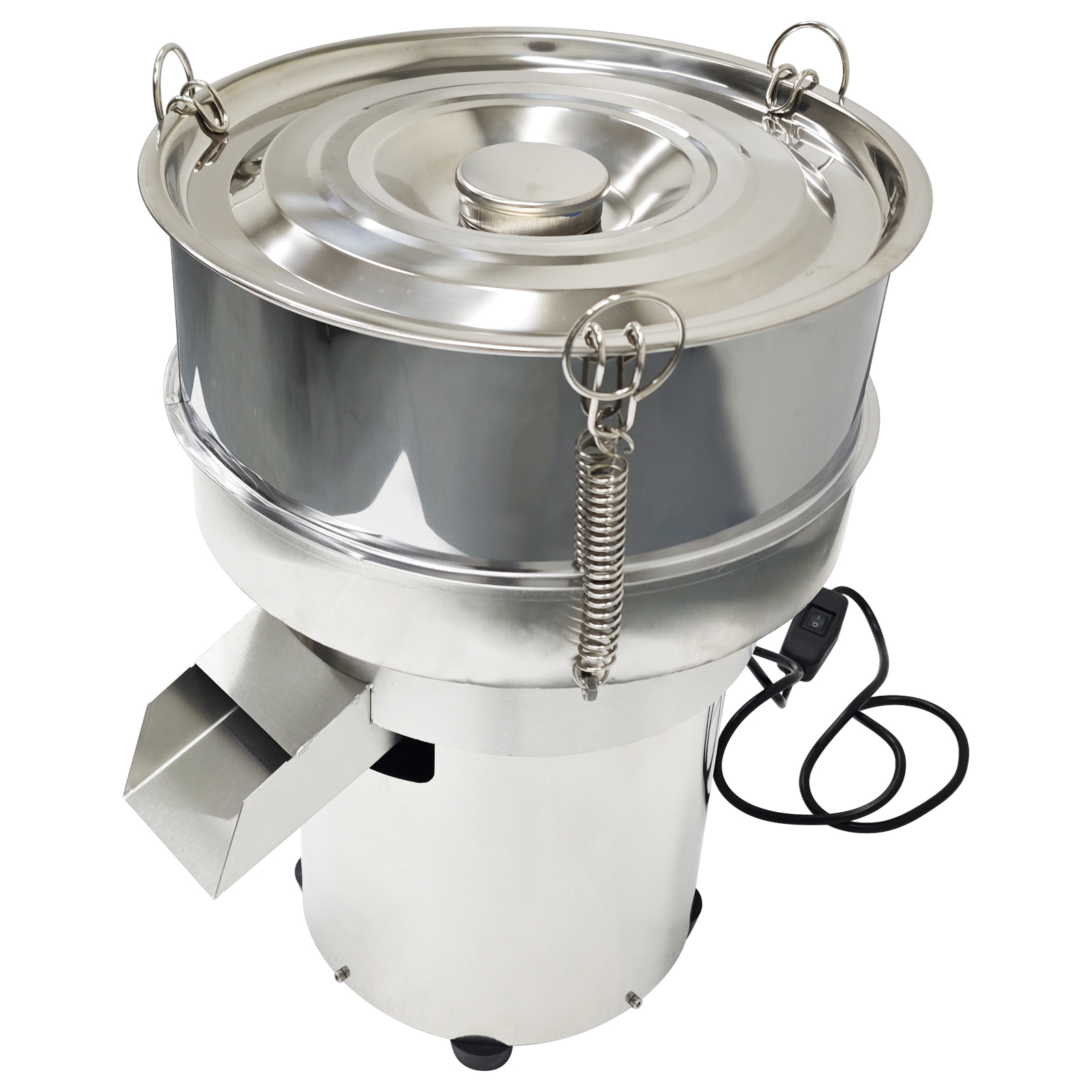

http://topseller365.com/data/prd/230/345/2.jpg
Attention

1.Securely tighten all nuts and bolts on the unit. Pay special attention to the motor mounting bolts. If a motor vibrates loose, damage to the power cord and to the structure may result as well as risk of personal injury.

2.Do not operate instrument with more than quantity of weight we recommended. Overloading the top and bottom weight assemblies will place excessive load on motor bearings which can cause permanent damage to the motor and to the instrument.

3.Never run motor with weights exposed. Failure to do so could result in severe personal injury or property damage.

4.Screens are fragile. Handle with care. Never place tools or parts on the screen or damage to screen may occur.

5.The noise level produced by this equipment may not be acceptable to your environment. Take every precaution to make certain that safe noise levels are met.　

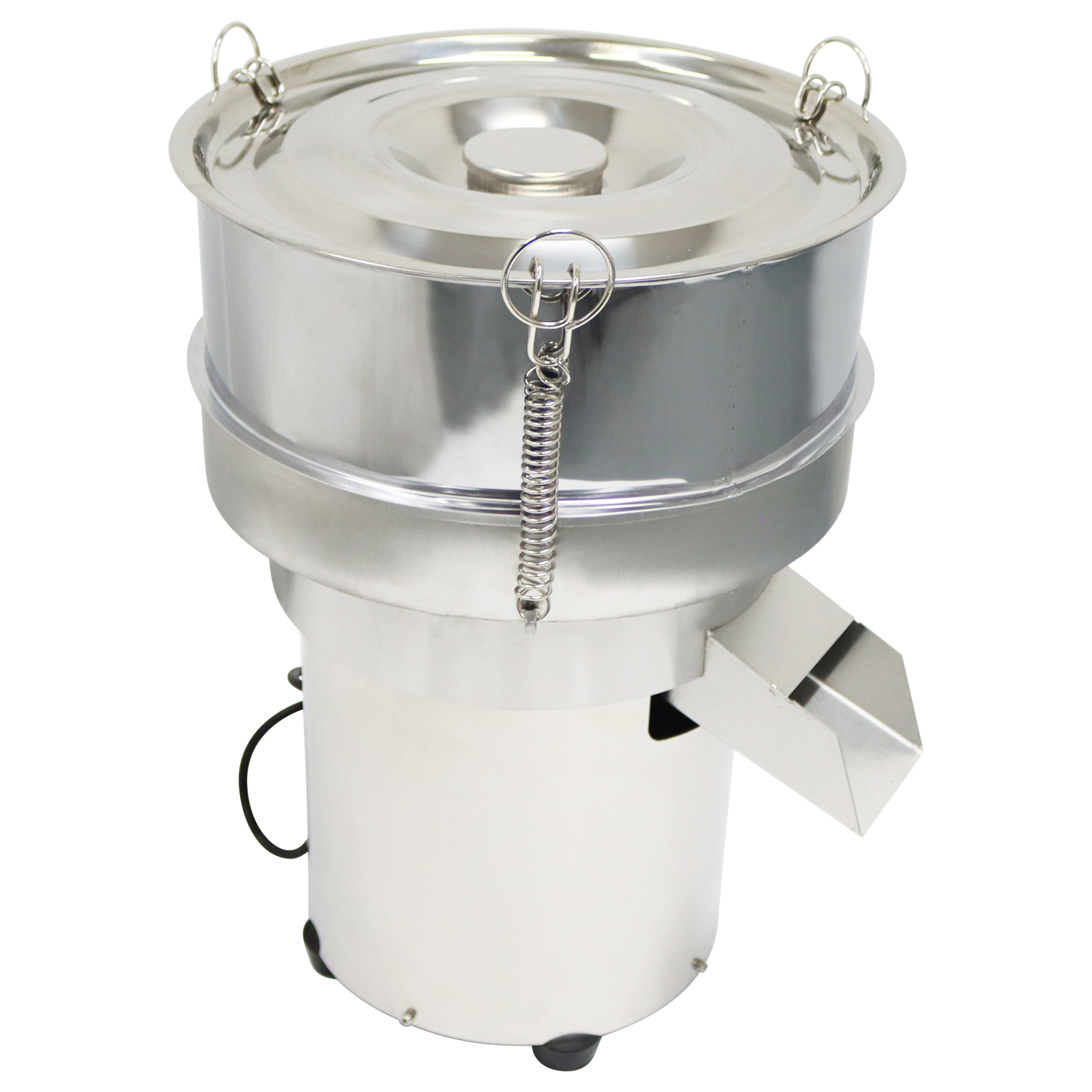

http://topseller365.com/data/prd/230/345/3.jpg
Introduction
300D is suitable for particles distribution analysis of grains, powder or the solids content test of liquid in laboratory and Quality Control Department. It has features of low noise, high efficiency andprecision.

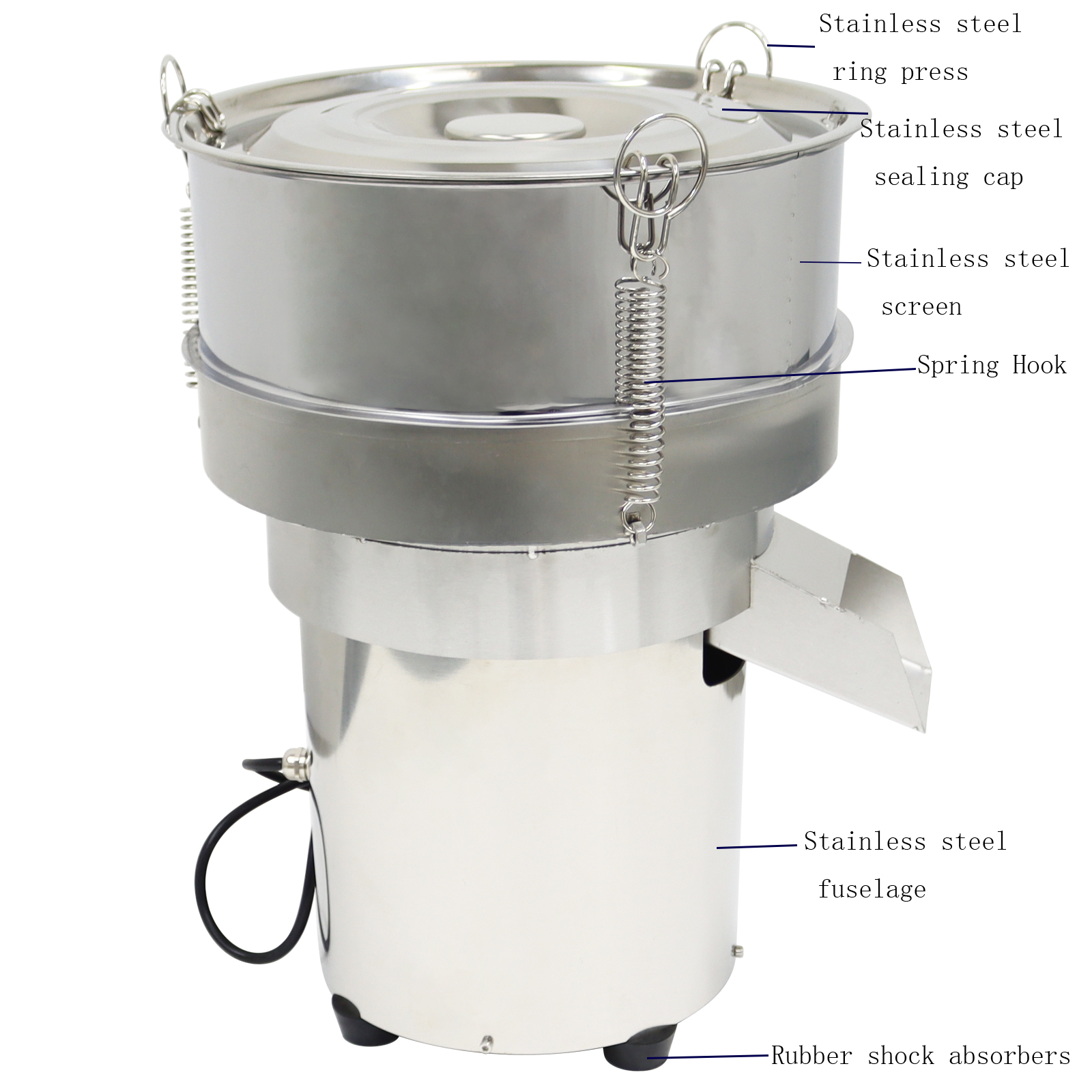

http://topseller365.com/data/prd/230/345/23.jpg
Technical parameters

Input Voltage

 110V

Power

 200W
Screen Diameter 11.81"
Screen height 3.94"
Machine size 11.81*11.81*18.7"
Size of discharge port 3.15"
Number of mesh mesh 60mesh

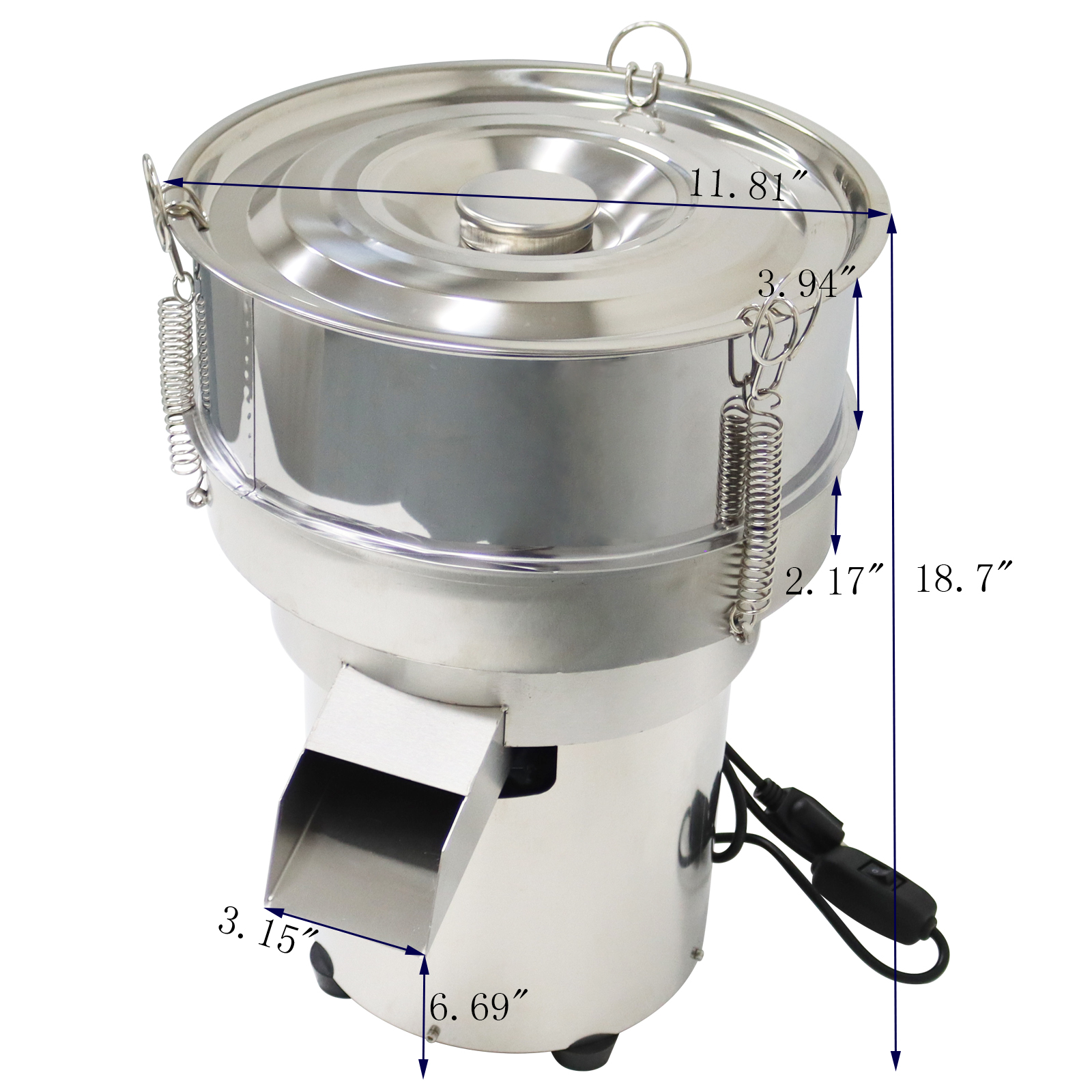

http://topseller365.com/data/prd/230/345/21.jpg

　

　
Other details
The machine is fitted with a 60 mesh screen.

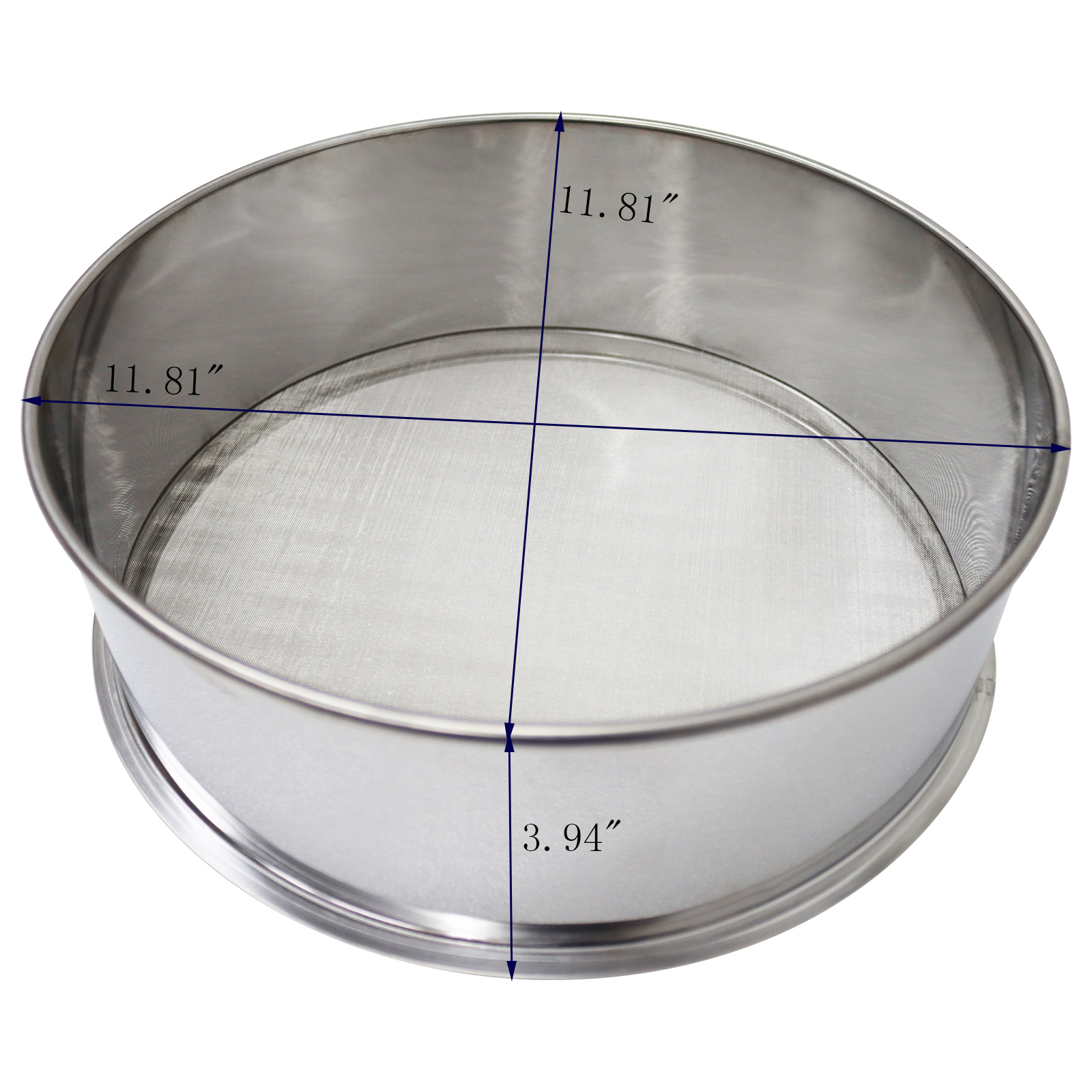

Screen size:11.81*11.81*3.94"

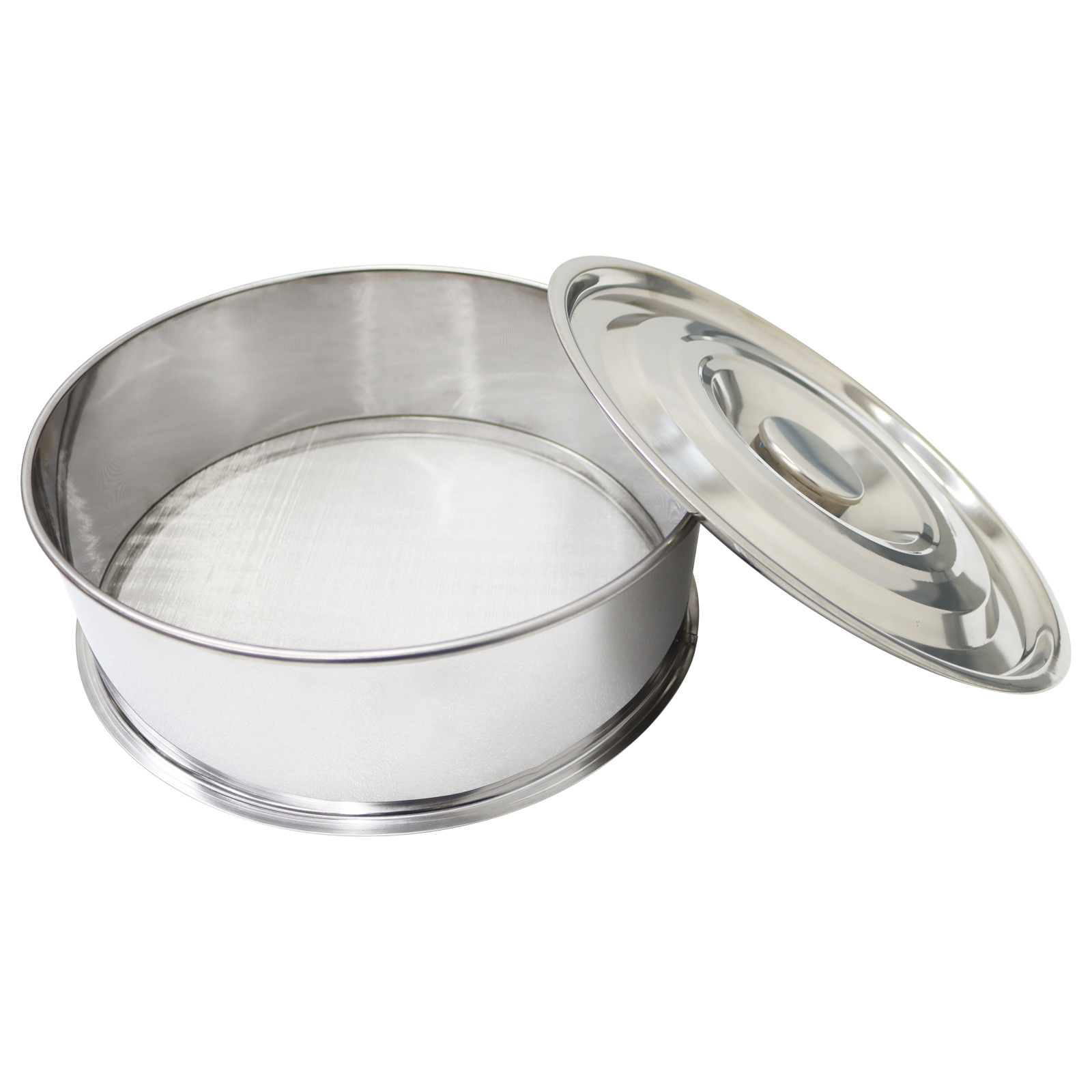

http://topseller365.com/data/prd/230/345/22.jpghttp://topseller365.com/data/prd/230/345/15.jpg

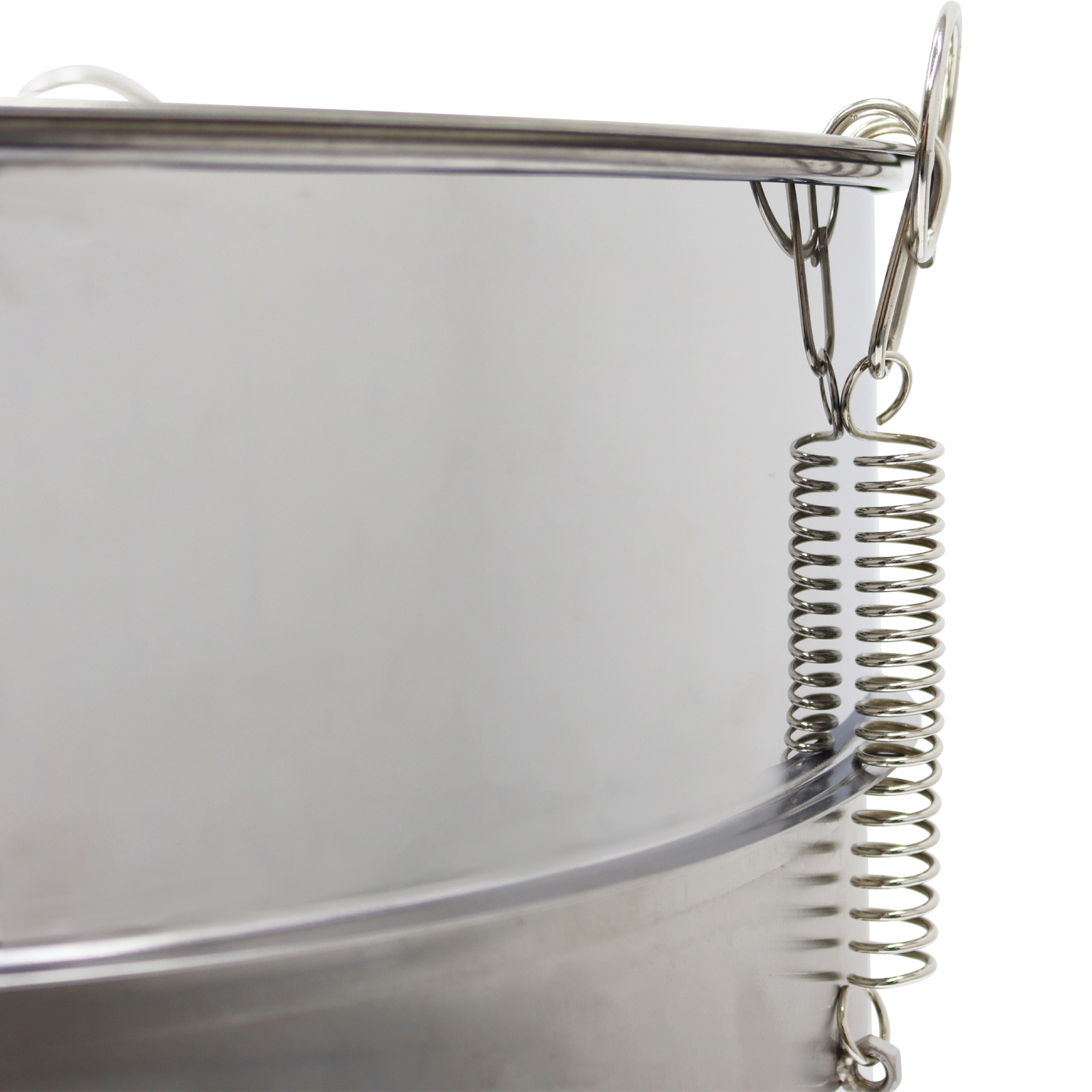

Thicken the spring fitting, fix the net frame, reduce the friction when working.

http://topseller365.com/data/prd/230/345/17.jpg

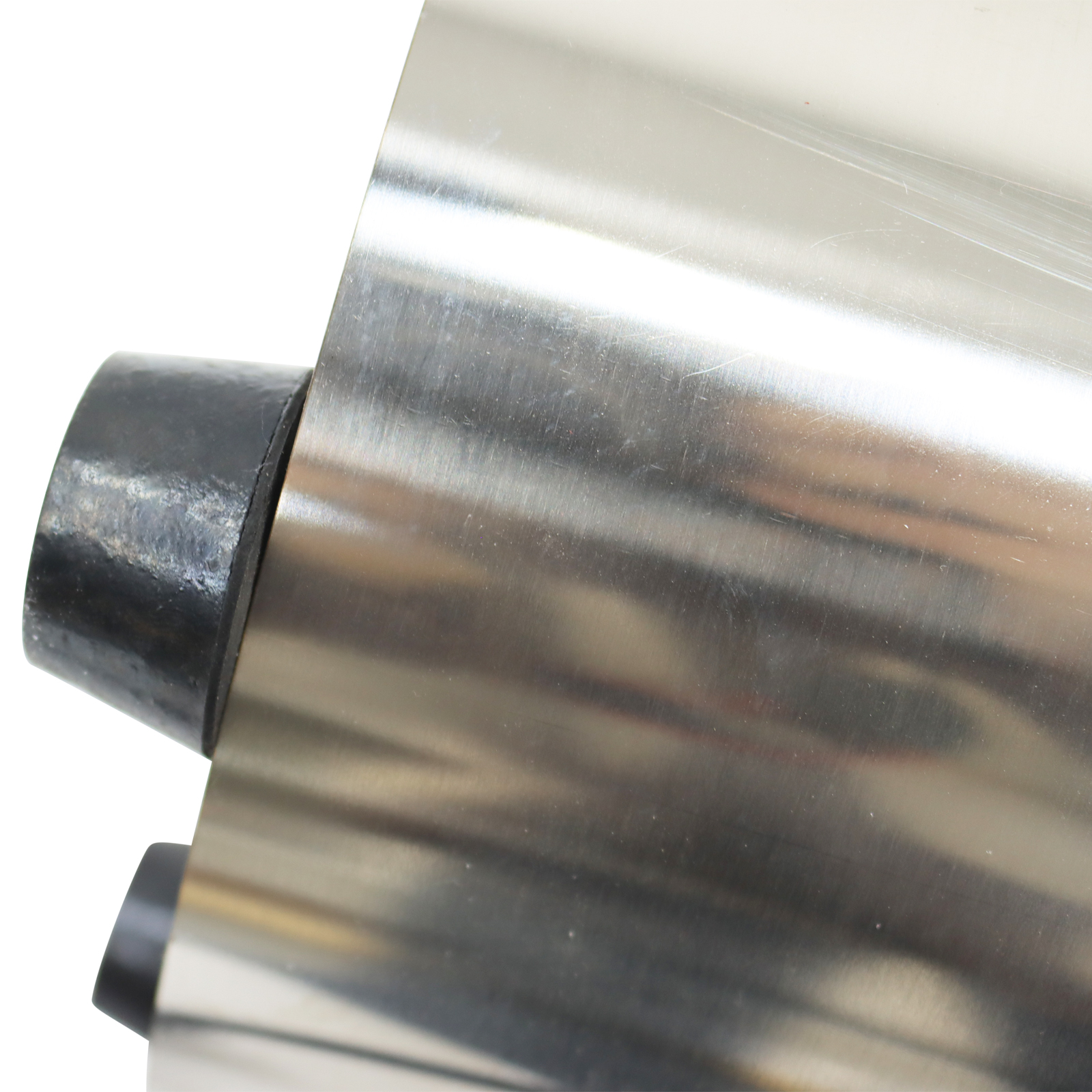

Rubber cushioning foot pad, reduce the noise of the machine when working.

　

 http://topseller365.com/data/prd/230/345/18.jpg
We also provide other number of screen mesh, if you need, please contact us.

http://topseller365.com/data/prd/230/345/13.jpg

Using:

1.Secure the net frame and cover of the machine before use.

2. After switching on the power, turn on the switch.
After using:
A. Turn off the power
B. Clean the screen after operation, place the machine in the right place.
Note:
A. Turn off power supply when the machine is not in use for an extended period of time.
B. The screen after operation, so they will be ready for use next time.
C. Do not splash water on the machine to avoid current leakage.
D. Turn the machine off immediately in the event of unusual noises and inspect for blockage or other irregularities.
E. Always ensure the hand shank and tight handle are securely tightened before operation.
F. Control vibration force as needed by increase or decrease the balance weight on vibration motor.
Item Number:
Electric Sieve Electric Stainless Steel Powder Shaker 110V（300D）--230345
　

You can make order with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
