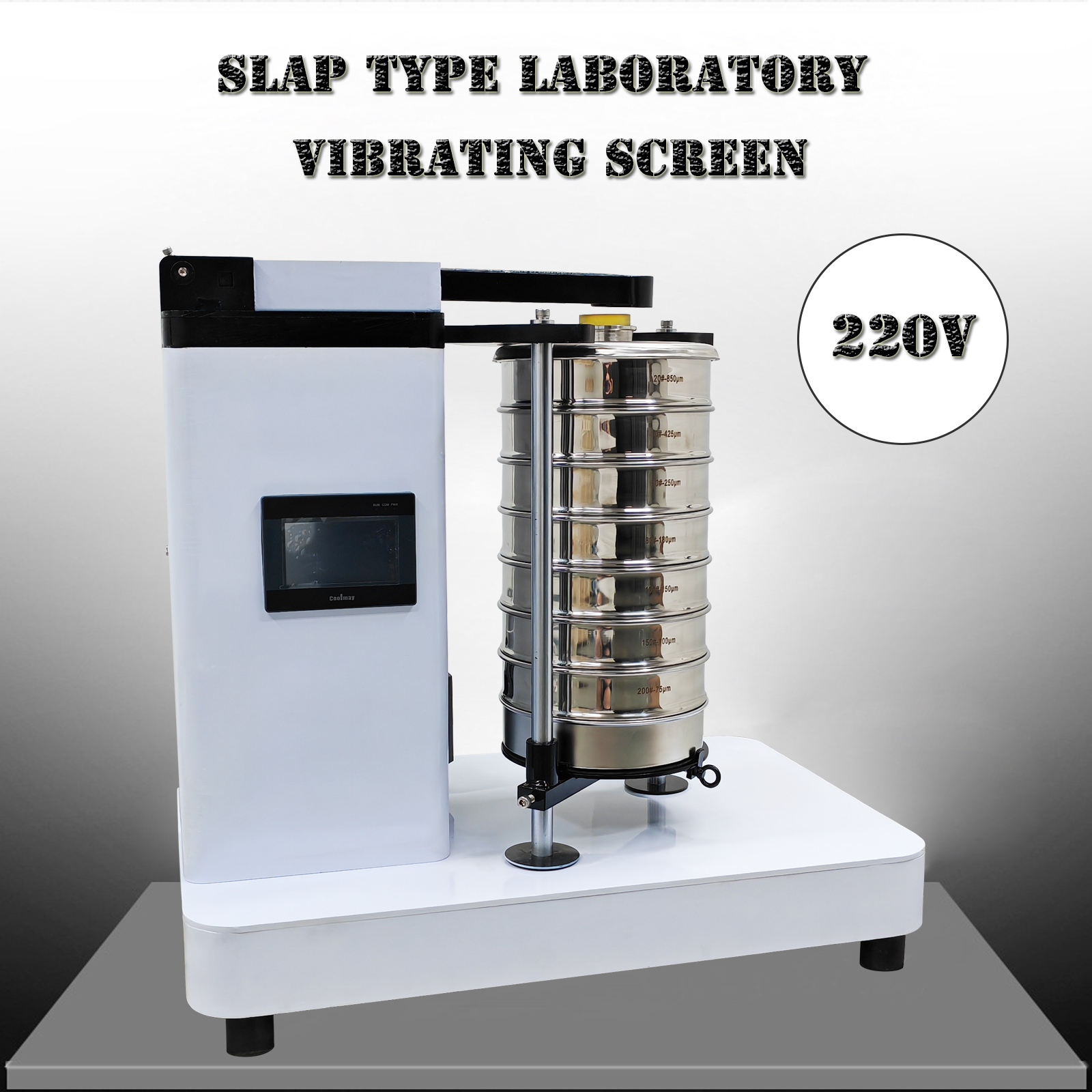

220V Slap Type Laboratory Vibrating Screen

The new swing impact screening machine is a high-precision screening machinery widely used in laboratories

such as chemical, food, pharmaceutical, mining, universities, and factories for screening various materials.

http://topseller365.com/data/prd/230/378/26.jpg
Technical parameters:



1.The machine is intermittent operation, 8 hours of

single shift operation laboratory equipment.

2.Voltage: 220V

3. Motor power: 0.55KW

4.Screen frame diameter: φ20cm

5.Screen frame layer: 7 layers

6.Screen size: 20 mesh, 40 mesh, 60 mesh, 80

mesh, 100 mesh, 150 mesh, 200 mesh

7. Rotation times: 310±6 Times /Min

8.The number of strokes: 170±3/ Times

9.Clap height:38±6 mm

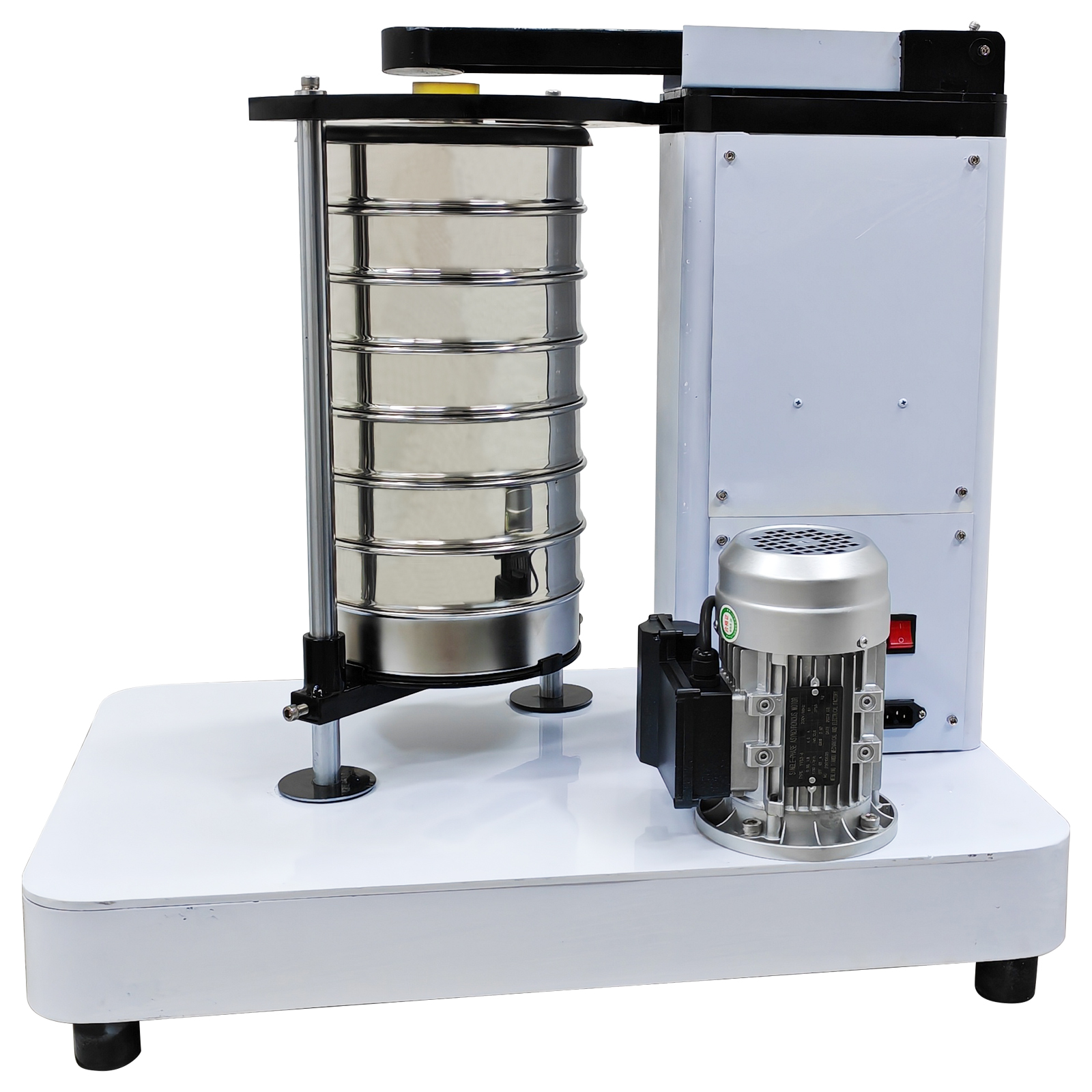

http://topseller365.com/data/prd/230/378/7.jpg

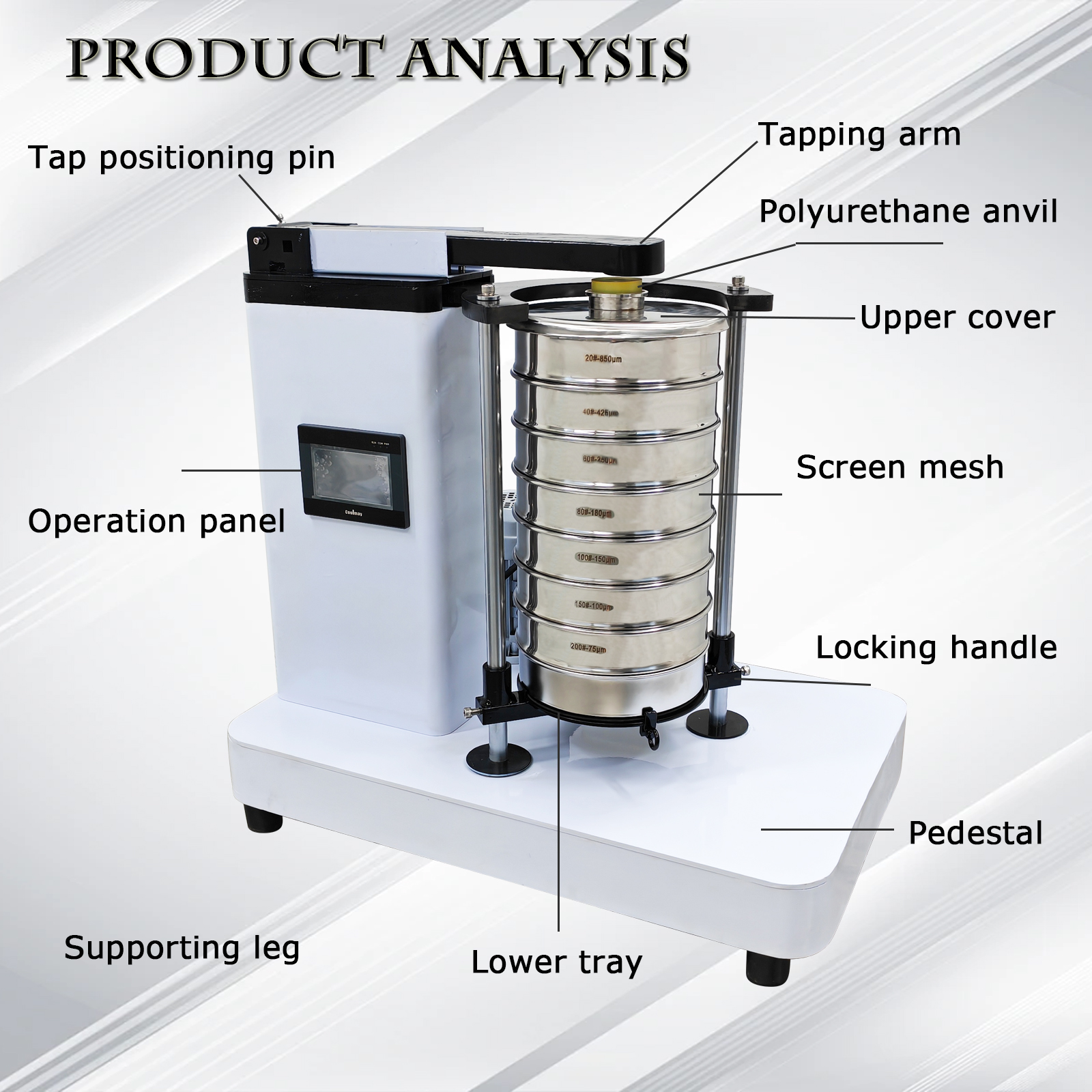

Feature
http://topseller365.com/data/prd/230/378/27.jpg

A. Tapping arm Hits the vibrating screen frame up and down.

B. Tap positioning pinTurn on or off the tapping function.

C. Locking handle Bottom frame bracket locking mechanism.

D. Lower tray Installation positioning screen frame.

E. Upper cover Used to fix the upper part of the screen frame.

F. Polyurethane anvil: transmits tapping vibration to the screen frame.

G. Operation panel: used to adjust and determine the working status and time.

Advantage

1.Transmission accuracy, good consistency: As a result of the gear drive, synchronous belt transmission

speed ratio accurately, won't produce general triangle off phenomenon, make each screening exercise

consistent under the same time, at the same time, equipment installation, digital timer, set a good time after

automatic stop, then ensure the consistency of the test or production requirements.

2.Long service life, maintenance, low maintenance cost: Due to the two gear has no direct contact with no

wear and tear, synchronous belt and gears contact adaptability good life is long, only when the repair

replacement synchronous belt, eccentric group adopted the whole way at the same time, again is accurate,

convenient installation, rotating part adopts bearing (standard), is not easy to wear and tear, low cost, easy

to replace.Reduces the technical requirement and cost of maintenance.

3.High screening efficiency:This screening method makes the screening at the same time with reciprocating

and flapping vibration two kinds of movement, will not jam the screen, fast feeding, screening thoroughly.

4.Clean: Because the transmission mode is adopted without refueling, the maintenance cost is reduced and

the environment is protected, which is very beneficial to the clean production environment.

Application
Widely used in food, chemical, abrasive, pigment, mining, metallurgy, geology,ceramics, national defense

and other industries of scientific research units, laboratories,testing room, production control and other

materials such as solid,inspection, screening, classification, particle size analysis, debris content analysis.

Especially used in the production of diamond and other superhard materials screening.

http://topseller365.com/data/prd/230/378/28.jpg

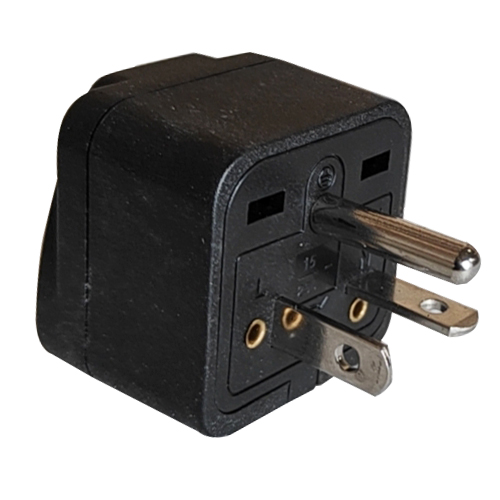

Note:Different places have different Receptacles.

Please note this plug and consult your electrician

before purchase.

http://topseller365.com/data/prd/230/378/ct.jpg
