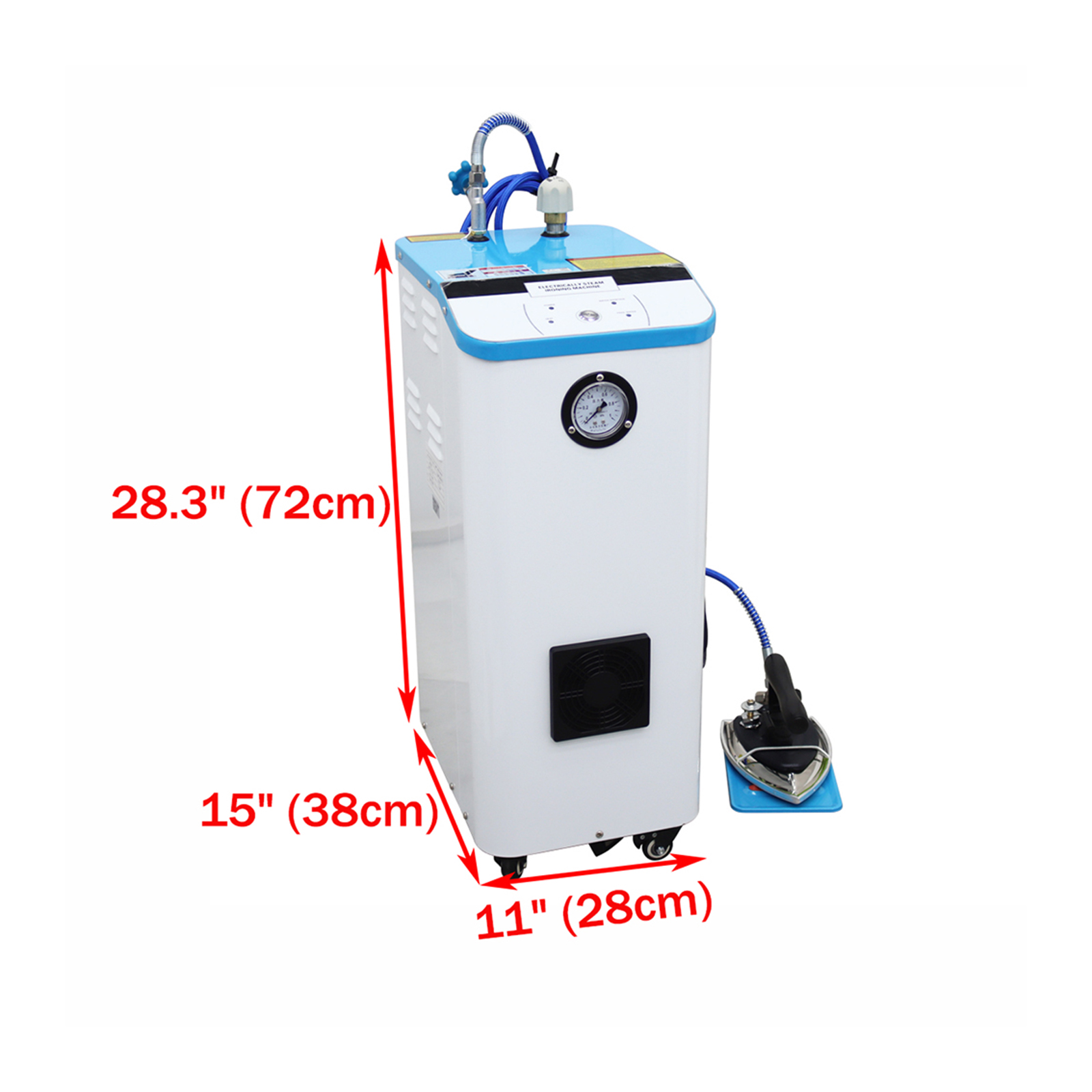

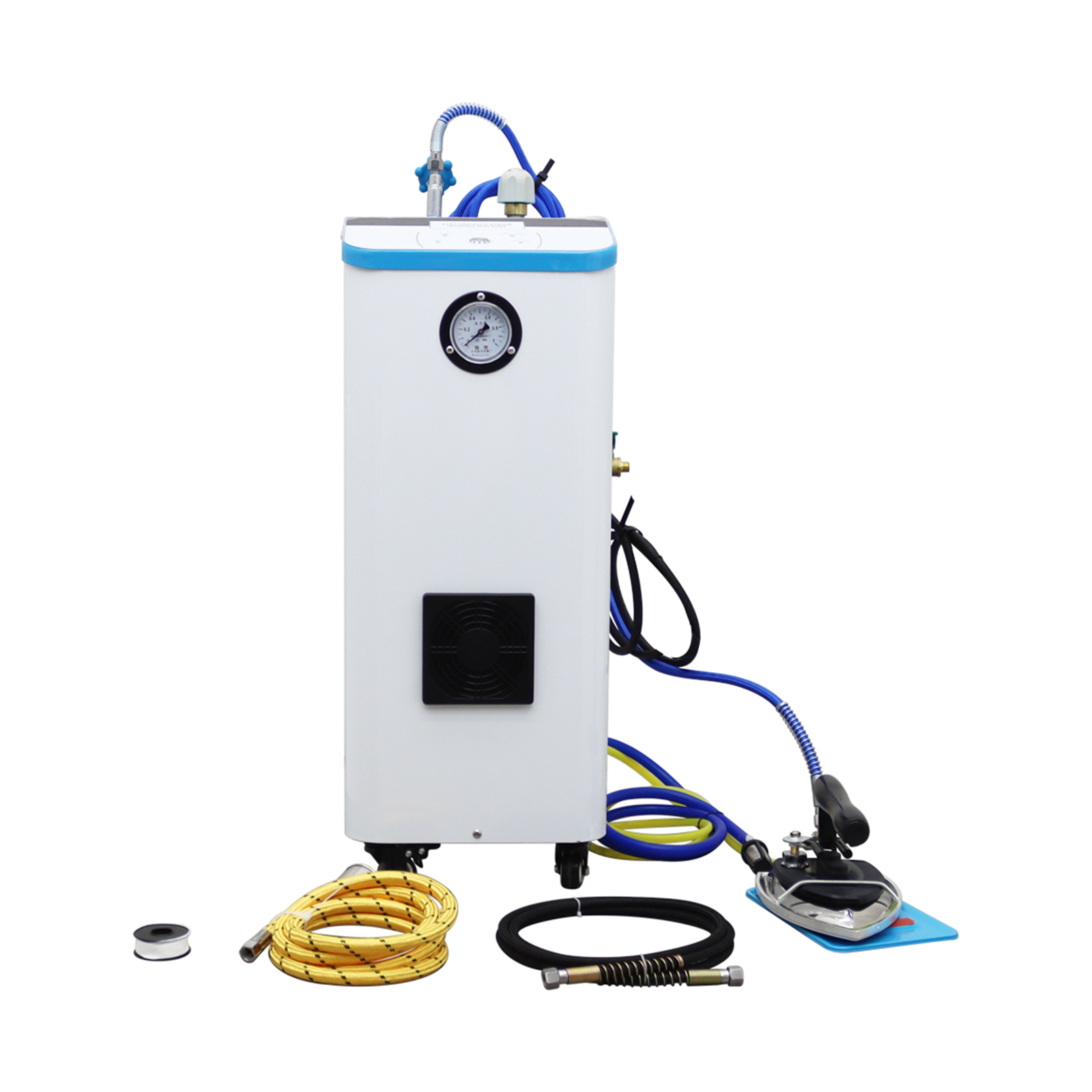

This product is a high-grade ironing appliance, super pressure, continuous dry steam input, secondary heating, will not clog the iron. It has the characteristics of automatic water addition, automatic water level control and automatic heating disconnect to ensure that the generator can continue to work.

Parameters:

Voltage: 110V

Heat Power: 3.5KW

Iron Power: 1KW

Rated Presure: 0.35-0.4MPa

Rated Steam Output: 3kg/h

Rated Temperature: 151℃

Tank volume: 7L

1. The gas volume is sufficient, the enhanced automatic pumping device works steadily, the flow rate increases, the strength increases, and the water supply protection of the heating pipe is ensured.

2. Switch indicator light at a glance, easy to operate.

3. Upgrade heat-resistant rubber wires and gas pipes to prevent damage and make them more durable.

4.With visual pressure gauge.

5.With all metal cold air system, can work all day.

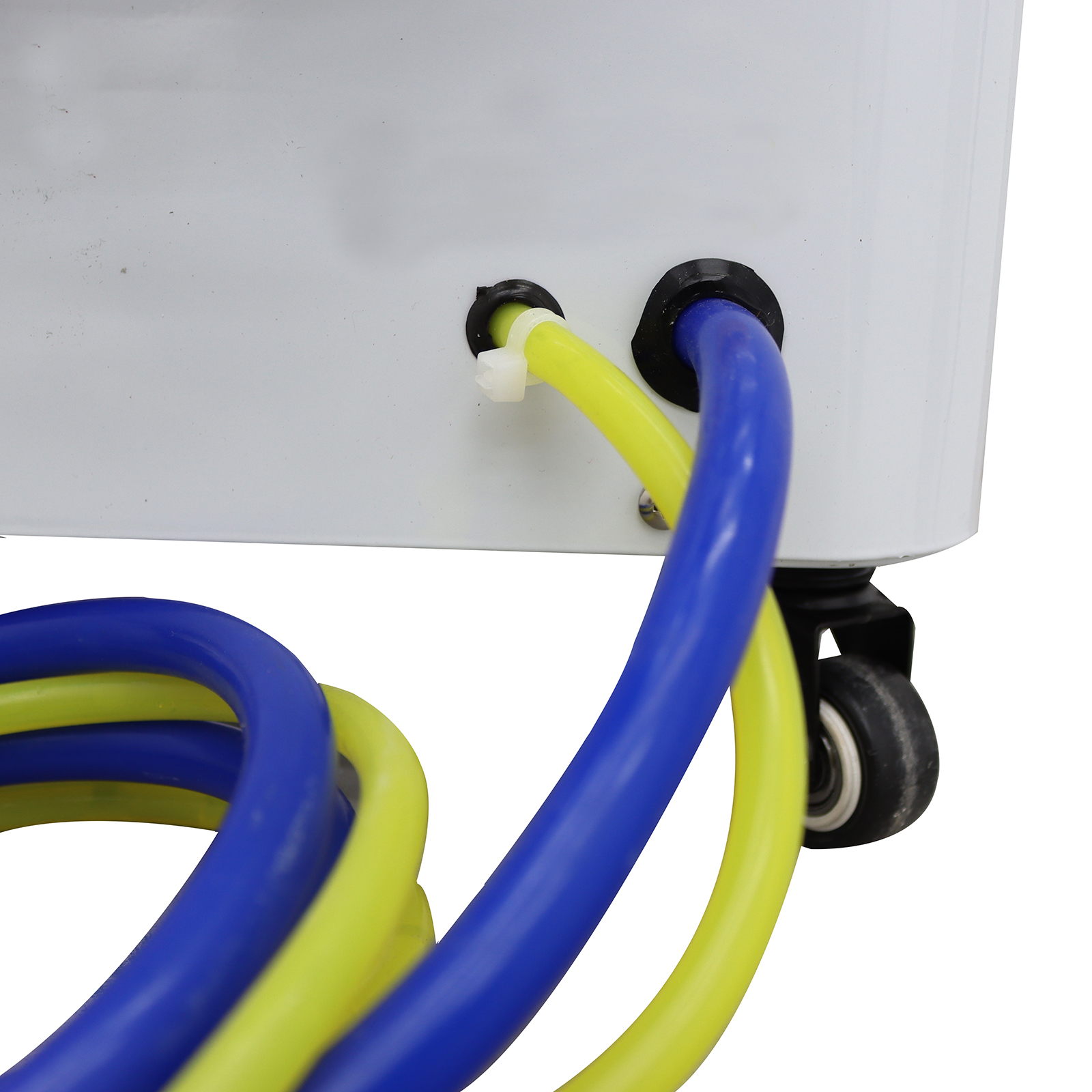

1. Prepare a bucket of water, the steam generator pumping pipe and filter into the bucket, preferably close to the bottom of the water.

2. Connect the power supply.

3. Push the air knife on the right side of the machine, press the boiler heating switch, and the indicator light will turn on. If the water inside the generator is not enough, the solenoid valve will be automatically opened to control the pump and start pumping. When the water level reaches the set water level, the pump will automatically stop working and the heating pipe will begin to heat. The heating indicator lights up until the generator reaches the rated pressure.

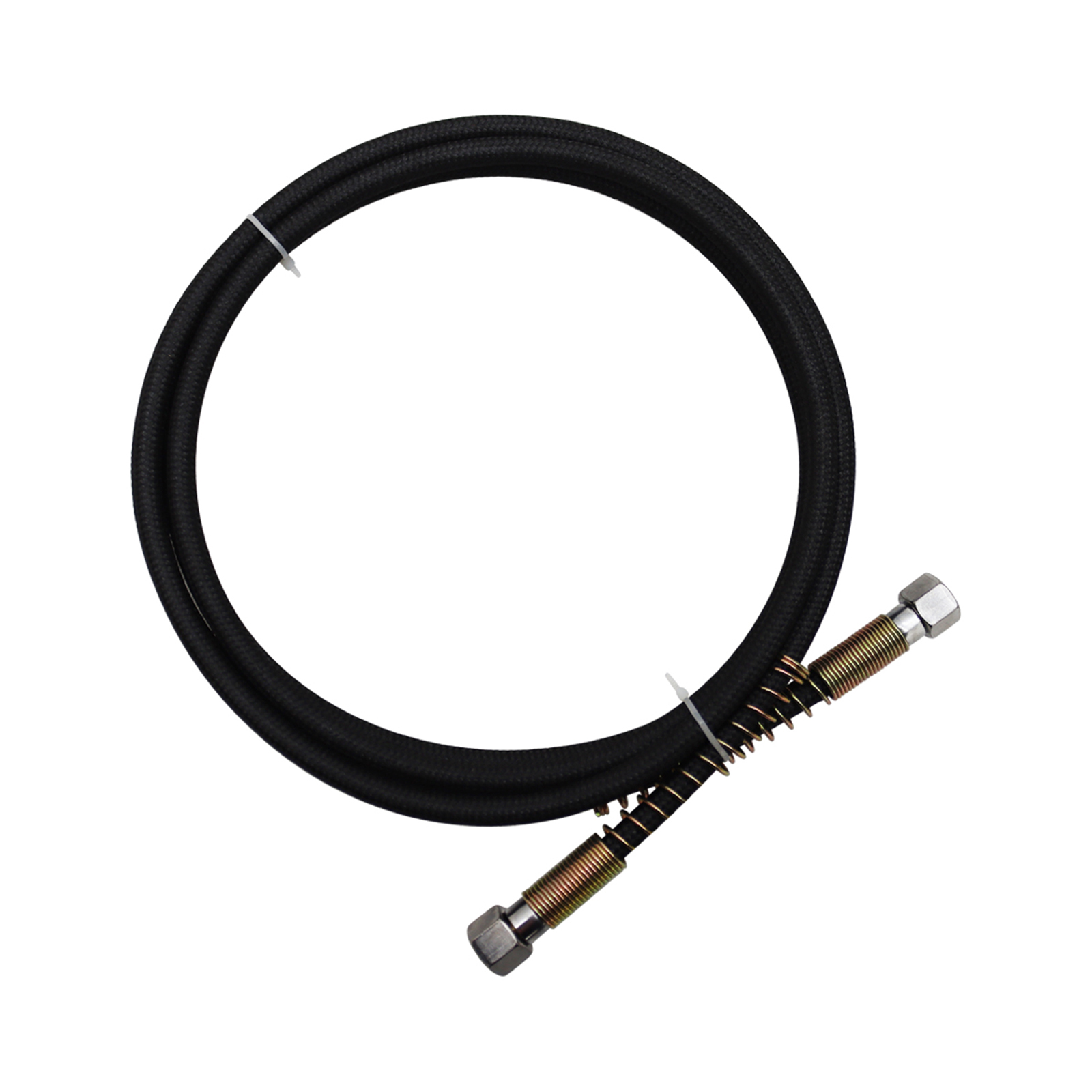

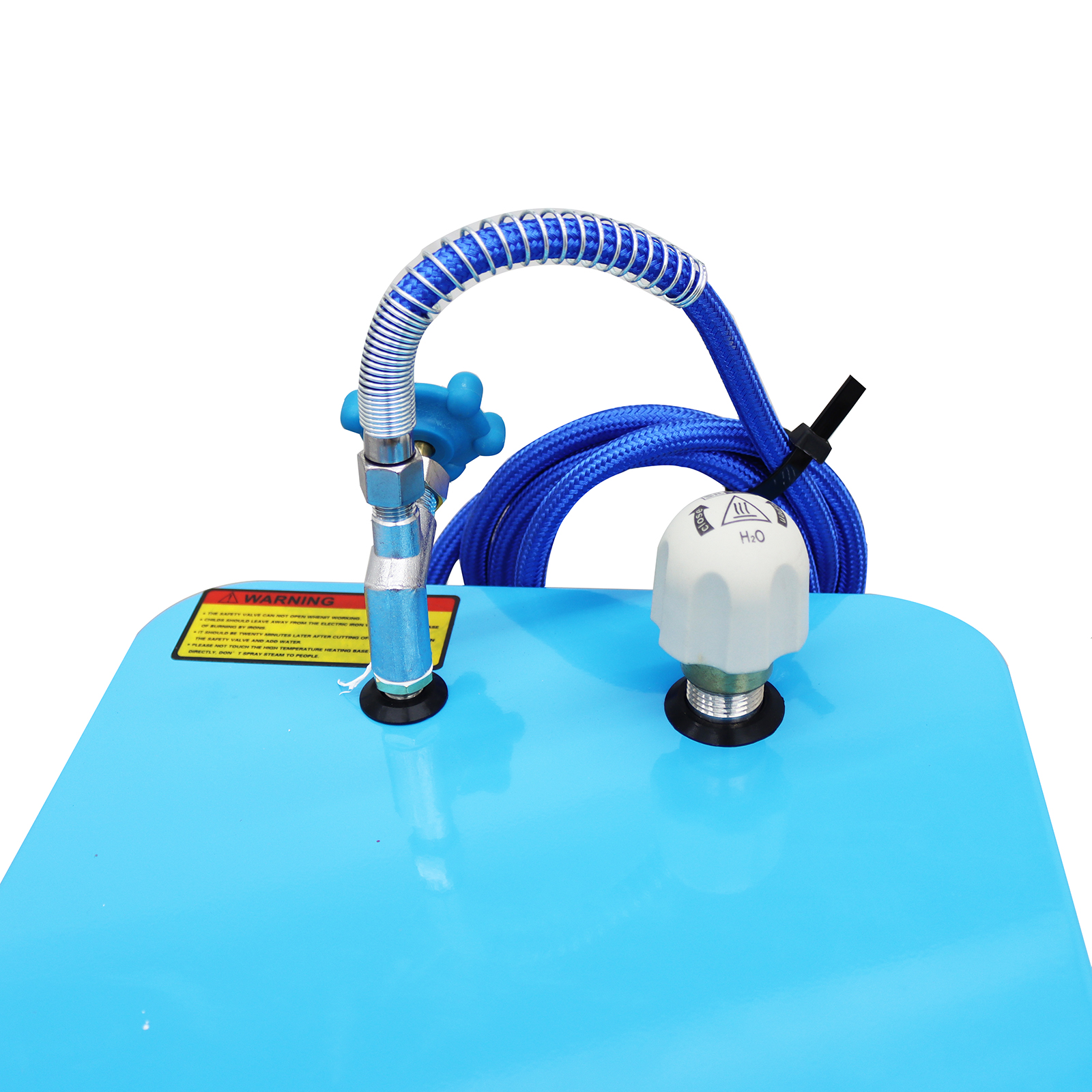

4. Connect the iron air connector and steam pipe, lock back the connector, and tighten the steam pipe.

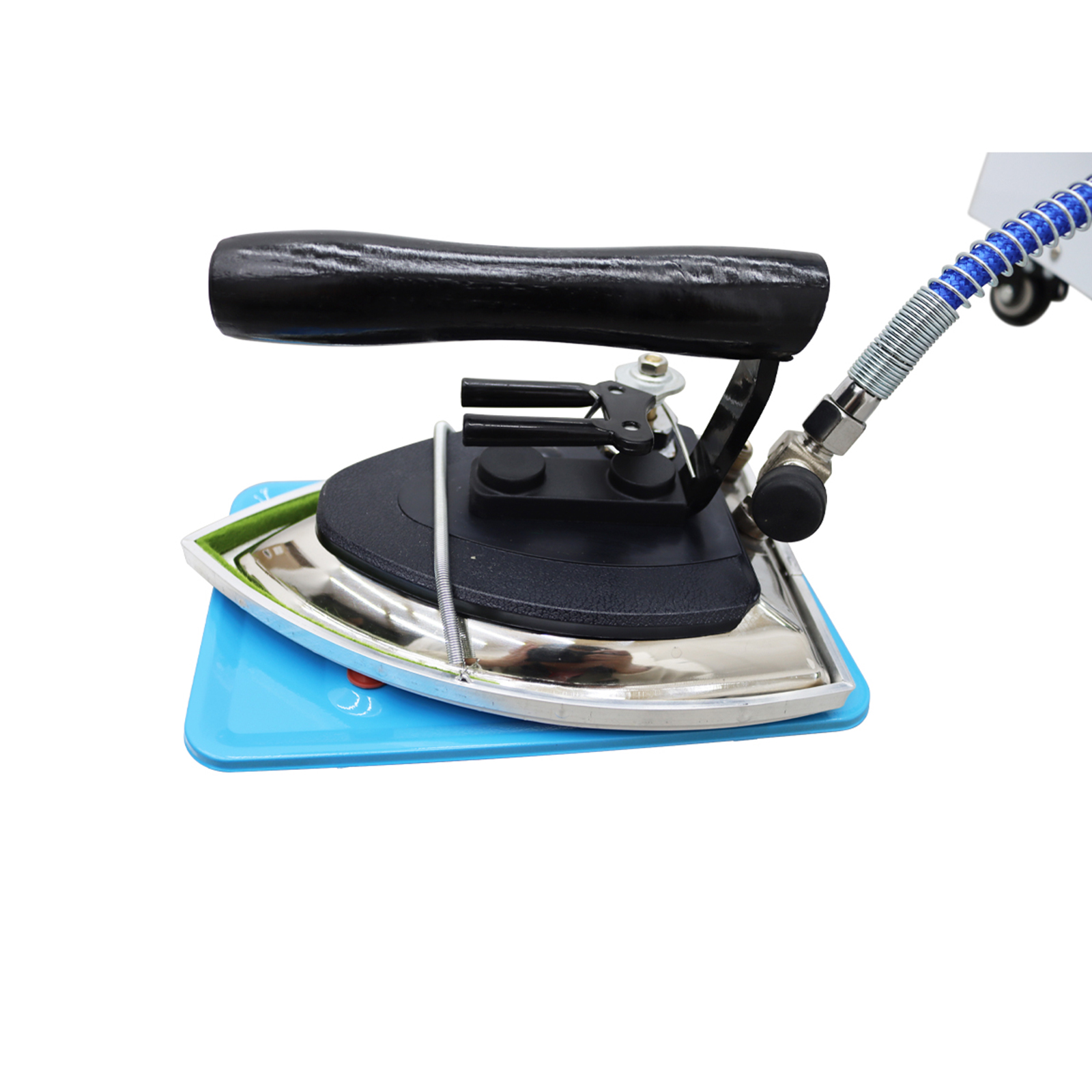

5. Open the heat switch of the iron, press the steam switch on the iron handle, the solenoid valve begins to provide steam, and the temperature of the iron can be adjusted by the knob.

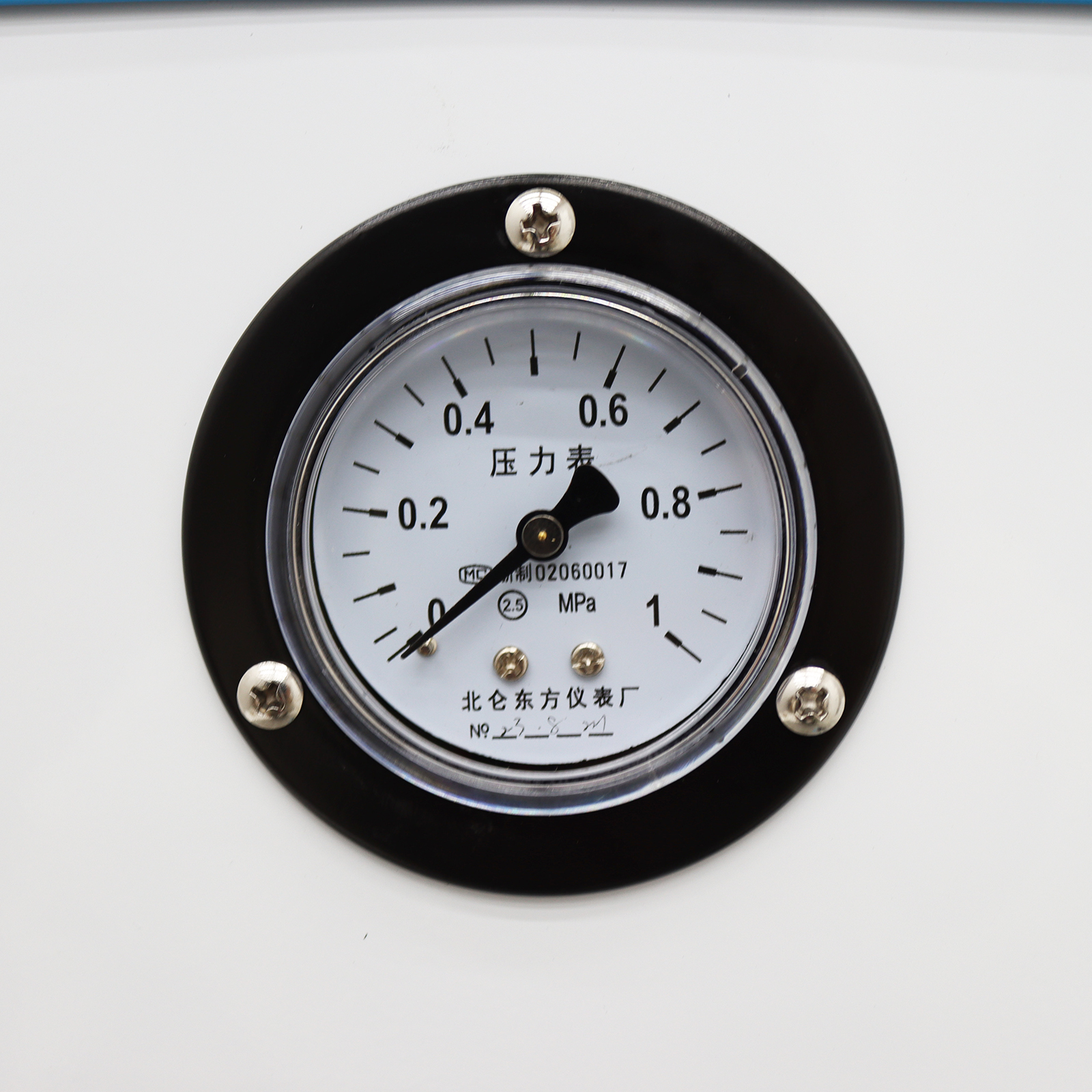

6. The pressure gauge on the front can check the real-time steam pressure. Water level controllers and probes ensure that water levels are kept within reasonable limits.

7. When the pressure is too high, the spring safety valve opens to reduce the pressure inside the generator.

1. The generator should be grounded reliably and the leakage protector installed.

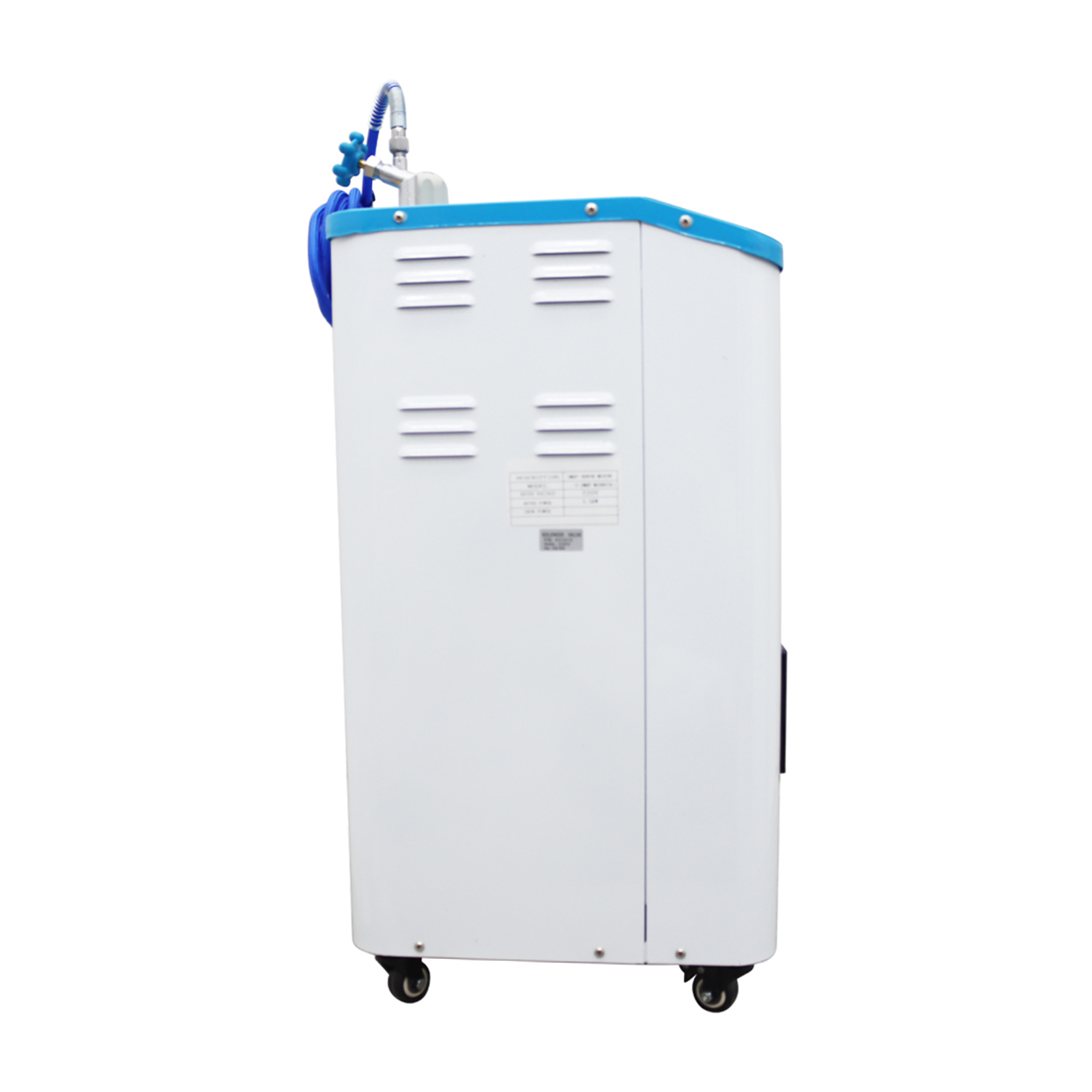

2. Prevent the rear heat sink window from being blocked and keep the machine dry.

3. Prevent the water pump from overheating due to dry burning without water.

4. Use soft water instead of hard water.

5. Open the drain valve regularly to drain.

6. Regularly clean the scale on the generator and probe.

and needs to be connected to the air

switch for use by the customer.
